rcaiman: CAnopy IMage ANalysis

Description

Tools for preprocessing and processing canopy photographs with support for raw data reading. Provides methods to address variability in sky brightness and to mitigate errors from image acquisition in non-diffuse light. Works with all types of fish-eye lenses, and some methods also apply to conventional lenses.

Author(s)

Maintainer: Gastón Mauro Díaz gastonmaurodiaz@gmail.com (ORCID)

See Also

Useful links:

• Report bugs at https://github.com/GastonMauroDiaz/rcaiman/issues

Apply a method by direction using a constant field of view

Description

Applies a method to each set of pixels defined by a direction and a constant field of view (FOV). By default, several built-in methods are available (see method), but a custom function can also be provided via the fun argument.

Usage

apply_by_direction(
  r,
  z,
  a,
  m,
  spacing = 10,
  laxity = 2.5,
  fov = c(30, 40, 50),
  method = c("thr_isodata", "detect_bg_dn", "fit_coneshaped_model",
    "fit_trend_surface_np1", "fit_trend_surface_np6"),
  fun = NULL,
  parallel = FALSE
)

Arguments

Value

terra::SpatRaster object with two layers: "dn" for digital number values and "n" for the number of valid pixels used in each directional estimate.

Note

This function is part of a manuscript currently under preparation.

References

There are no references for Rd macro ⁠\insertAllCites⁠ on this help page.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)

# Automatic sky brightness estimation
sky <- apply_by_direction(r, z, a, m, spacing = 10, fov = c(30, 60),
                          method = "detect_bg_dn", parallel = TRUE)
plot(sky$dn)
plot(r / sky$dn)

# Using cone-shaped model
sky_cs <- apply_by_direction(caim, z, a, m, spacing = 15, fov = 60,
                             method = "fit_coneshaped_model", parallel = TRUE)
plot(sky_cs$dn)

# Using trend surface model
sky_s <- apply_by_direction(caim, z, a, m, spacing = 15, fov = 60,
                            method = "fit_trend_surface_np1", parallel = TRUE)
plot(sky_s$dn)

# Using a custom thresholding function
thr <- apply_by_direction(r, z, a, m, 15, fov = c(30, 40, 50),
  fun = function(r, z, a, m) {
    thr <- tryCatch(thr_twocorner(r[m])$tm, error = function(e) NA)
    r[] <- thr
    r
  },
  parallel = TRUE
)
plot(thr$dn)
plot(binarize_with_thr(r, thr$dn))

## End(Not run)

Build azimuth image

Description

Creates a single-layer raster in which pixel values represent azimuth angles, assuming an upwards-looking hemispherical photograph with the optical axis vertically aligned.

Usage

azimuth_image(z, orientation = 0)

Arguments

Value

terra::SpatRaster with the same dimensions as the input zenith image. Each pixel contains the azimuth angle in degrees, with zero representing North and angles increasing counter-clockwise. The object carries attributes orientation and lens_coef.

Note

If orientation = 0, North (0 deg) is located at the top of the image, as in conventional maps, but East (90 deg) and West (270 deg) appear flipped relative to maps. To understand this, take two flash-card-sized pieces of paper. Place one on a table in front of you and draw a compass rose on it. Hold the other above your head, with the side facing down toward you, and draw another compass rose following the directions from the one on the table. This mimics the situation of taking an upwards-looking photo with a smartphone while viewing the screen, and it will result in a mirrored arrangement. Compare both drawings to see the inversion.

Examples

z <- zenith_image(600, lens("Nikon_FCE9"))
a <- azimuth_image(z)
plot(a)
## Not run:
a <- azimuth_image(z, 45)
plot(a)

## End(Not run)

Regional thresholding of greyscale images

Description

Perform thresholding of greyscale images by applying a method regionally, using a segmentation map.

Usage

binarize_by_region(r, segmentation, method)

Arguments

Details

This function supports several thresholding methods applied within the regions defined by segmentation:

Methods from the autothresholdr package:

Any method supported by autothresholdr::auto_thresh() can be used by specifying its name. For example, "IsoData" applies the classic iterative intermeans algorithm Ridler and Calvard (1978), which is among the most recommended for canopy photography (Jonckheere et al. 2005).

In-package implementation of IsoData:

Use "thr_isodata" to apply thr_isodata(), a native implementation of the same algorithm

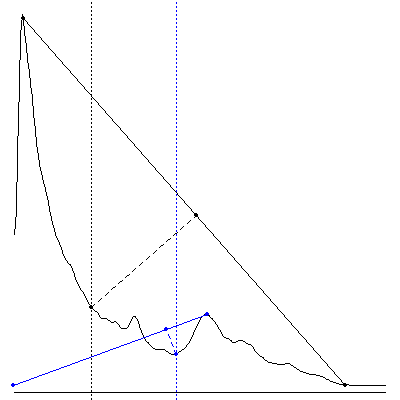

Two-corner method:

Use "thr_twocorner" to apply thr_twocorner(), which implements a geometric thresholding strategy based on identifying inflection points in the histogram, first introduced to canopy photography by Macfarlane (2011). Since this method tend to fail, the fallback is thr_isodata

Value

Logical terra::SpatRaster (TRUE for sky, FALSE for non-sky) of the same dimensions as r.

Note

When methods from the autothresholdr package are used, r values should be constrained to the range [0, 1]. See normalize_minmax().

References

Jonckheere I, Nackaerts K, Muys B, Coppin P (2005). “Assessment of automatic gap fraction estimation of forests from digital hemispherical photography.” Agricultural and Forest Meteorology, 132(1-2), 96–114. doi:10.1016/j.agrformet.2005.06.003.

Leblanc SG, Chen JM, Fernandes R, Deering DW, Conley A (2005). “Methodology comparison for canopy structure parameters extraction from digital hemispherical photography in boreal forests.” Agricultural and Forest Meteorology, 129(3–4), 187–207. ISSN 0168-1923, doi:10.1016/j.agrformet.2004.09.006.

Macfarlane C (2011). “Classification method of mixed pixels does not affect canopy metrics from digital images of forest overstorey.” Agricultural and Forest Meteorology, 151(7), 833–840. doi:10.1016/j.agrformet.2011.01.019.

Ridler TW, Calvard S (1978). “Picture thresholding using an iterative selection method.” IEEE Transactions on Systems, Man, and Cybernetics, 8(8), 630–632. doi:10.1109/tsmc.1978.4310039.

Examples

## Not run:
path <- system.file("external/DSCN4500.JPG", package = "rcaiman")
zenith_colrow <- c(1276, 980)
diameter <- 756*2
caim <- read_caim(path, zenith_colrow - diameter/2, diameter, diameter)
z <- zenith_image(ncol(caim), lens("Nikon_FCE9"))
r <- invert_gamma_correction(caim$Blue)
r <- correct_vignetting(r, z, c(0.0638, -0.101)) %>% normalize_minmax()
rings <- ring_segmentation(z, 15)
bin <- binarize_by_region(r, rings, "thr_isodata")
plot(bin)

## End(Not run)

Binarize with known thresholds

Description

Apply a threshold or a raster of thresholds to a grayscale image, producing a binary image.

Usage

binarize_with_thr(r, thr)

Arguments

Details

This function supports both global and pixel-wise thresholding. It is a wrapper around the > operator from the terra package. If a single numeric threshold is provided via thr, it is applied globally to all pixels in r. If instead a terra::SpatRaster object is provided, local thresholding is performed, where each pixel is compared to its corresponding threshold value.

This is useful after estimating thresholds using thr_twocorner(), thr_isodata(), or apply_by_direction(method = "thr_isodata"), among other posibilities.

Value

Logical terra::SpatRaster (TRUE for sky, FALSE for non-sky) with the same dimensions as r.

Note

For global thresholding, thr must be greater than or equal to the minimum value of r and lower than its maximum value.

Examples

r <- read_caim()
bin <- binarize_with_thr(r$Blue, thr_isodata(r$Blue[]))
plot(bin)

## Not run:
# This function is also compatible with thresholds estimated using
# the 'autothresholdr' package:
require(autothresholdr)
r <- r$Blue
r <- normalize_minmax(r) %>% multiply_by(255) %>% round()
thr <- auto_thresh(r[], "IsoData")[1]
bin <- binarize_with_thr(r, thr)
plot(bin)

## End(Not run)

Calculate diameter

Description

Calculate the diameter in pixels of a 180 deg fisheye image.

Usage

calc_diameter(lens_coef, radius, angle)

Arguments

Details

This function is useful when the recording device has a field of view smaller than 180 deg. Given a lens projection function and data points consisting of radii (pixels) and their corresponding zenith angles (\theta), it returns the horizon radius (i.e., the radius for \theta equal to 90 deg).

When working with non-circular hemispherical photography, this function helps determine the diameter that a circular image would have if the equipment recorded the whole hemisphere, required to build the correct zenith image to use as input for expand_noncircular().

The required data (radius–angle pairs) can be obtained following the instructions in the user manual of Hemisfer software. A slightly simpler alternative is:

1. Find a vertical wall and a leveled floor, both well-constructed.

2. Draw a triangle of 5 \times 4 \times 3 meters on the floor, with the 4-meter side along the wall.

3. Place the camera over the vertex 3 meters away from the wall, at a chosen height (e.g., 1.3 m).

4. Make a mark on the wall at the chosen height over the wall-vertex nearest to the camera vertex. Make four more marks at 1 m intervals along a horizontal line. This creates marks for 0, 18, 34, 45, and 54 deg \theta.

5. Before taking the photograph, align the zenith coordinates with the 0 deg \theta mark and ensure the optical axis is level.

The line selection tool of ImageJ can be used to measure the distance in pixels between points on the image. Draw a line and use the menu Analyze > Measure to obtain its length.

For obtaining the projection of a new lens, see calibrate_lens().

Value

Numeric vector of length one. Estimated diameter in pixels, rounded to the nearest even integer (see zenith_image() for details).

Examples

# Nikon D50 and Fisheye Nikkor 10.5mm lens
calc_diameter(lens("Nikkor_10.5mm"), 1202, 54)

Calculate relative radius

Description

Convert zenith angles (degrees) to normalized radial distance using the lens projection model.

Usage

calc_relative_radius(angle, lens_coef)

Arguments

Details

This helper maps zenith angle(s) to a relative radius in [0, 1] given the lens projection coefficients.

Value

Numeric vector of the same length as angle, constrained to [0, 1].

Examples

calc_relative_radius(45, lens())

Calculate spherical distance

Description

Computes the angular distance, in radians, between directions defined by zenith and azimuth angles on the unit sphere.

Usage

calc_spherical_distance(z1, a1, z2, a2)

Arguments

Details

This function calculates the angle between two directions originating from the center of a unit sphere, using spherical trigonometry. The result is commonly referred to as spherical distance or angular distance. These terms are interchangeable when the sphere has radius one, as is standard in many applications, including celestial coordinate systems and, by extension, canopy hemispherical photography.

Spherical distance corresponds to the arc length of the shortest path between two points on the surface of a sphere. When the radius is one, this arc length equals the angle itself, expressed in radians.

Value

Numeric vector of the same length as z1 and a1, containing the spherical distance (in radians) from each (z1, a1) point to the reference direction (z2, a2).

Examples

set.seed(1)
z1 <- rnorm(10, 45, 20) * pi/180
a1 <- rnorm(10, 180, 90) * pi/180
calc_spherical_distance(z1, a1, 0, 0)

Calculate zenith raster coordinates

Description

Calculate zenith raster coordinates from points digitized with the open-source software package ‘ImageJ’.

Usage

calc_zenith_colrow(path_to_csv)

Arguments

Details

In this context, “zenith” denotes the location in the image that corresponds to the projection of the vertical direction when the optical axis is aligned vertically.

The technique described under the headline ‘Optical center characterization’ of the user manual of the software Can-Eye can be used to acquire the data for determining the zenith coordinates. This technique was used by Pekin and Macfarlane (2009), among others. Briefly, it consists in drilling a small hole in the cap of the fisheye lens (away from the center), and taking about ten photographs without removing the cap. The cap must be rotated about 30º before taking each photograph.

The point selection tool of ‘ImageJ’ software should be used to manually digitize the white dots and create a CSV file to feed this function. After digitizing the points on the image, use the dropdown menu Analyze>Measure to open the Results window. To obtain the CSV file, use File>Save As...

Another method (only valid when enough of the circle perimeter is depicted in the image) is taking a very bright picture (e.g., of a white-painted corner of a room) with the lens uncovered (do not use any mount). Then, digitize points over the circle perimeter. This was the method used for producing the example file (see Examples). It is worth noting that the perimeter of the circle depicted in a circular hemispherical photograph is not necessarily the horizon.

Value

Numeric vector of length two. Raster coordinates of the zenith. These coordinates follow image (raster) convention: the origin is in the upper-left, and the vertical axis increases downward, like a spreadsheet. This contrasts with Cartesian coordinates, where the vertical axis increases upward.

Note

This function assumes that all data points belong to the same circle, meaning that it does not support multiple holes when the Can-Eye procedure of drilling the lens cap is applied. The circle is fitted using the method presented by Kasa (1976).

References

Kasa I (1976). “A circle fitting procedure and its error analysis.” IEEE Transactions on Instrumentation and Measurement, IM–25(1), 8–14. ISSN 1557-9662, doi:10.1109/tim.1976.6312298.

Pekin B, Macfarlane C (2009). “Measurement of crown cover and leaf area index using digital cover photography and its application to remote sensing.” Remote Sensing, 1(4), 1298–1320. doi:10.3390/rs1041298.

Examples

## Not run:
path <- system.file("external/points_over_perimeter.csv",
                    package = "rcaiman")
calc_zenith_colrow(path)

## End(Not run)

Calibrate lens

Description

Calibrate a fisheye lens to derive the mathematical relationship between image-space radial distances from the zenith and zenith angles in hemispherical space (assuming upward-looking hemispherical photography with the optical axis vertically aligned).

Usage

calibrate_lens(path_to_csv, degree = 3)

Arguments

Details

Fisheye lenses have a wide field of view and radial symmetry with respect to distortion. This property allows precise fitting of a polynomial model to relate pixel distances to zenith angles. The method implemented here, known as the "simple method", is described in detail by Díaz et al. (2024).

Value

List with named elements:

ds

Data frame used to fit the model.

model

lm object fitted to pixel distance vs. zenith angle.

horizon_radius

Radius at 90 deg.

lens_coef

Numeric vector of polynomial model coefficients for predicting relative radius.

zenith_colrow

Raster coordinates of the zenith push pin.

max_theta

Maximum zenith angle (deg).

max_theta_px

Distance in pixels between the zenith and the maximum zenith angle.

Step-by-step guide for producing a CSV file to feed this function

Materials

• this package and ImageJ

• camera and lens

• tripod

• standard yoga mat

• table at least as wide as the yoga mat width

• twenty two push pins of different colors

• one print of this sheet (A1 size, almost like a research poster).

• scissors

• some patience

Instructions

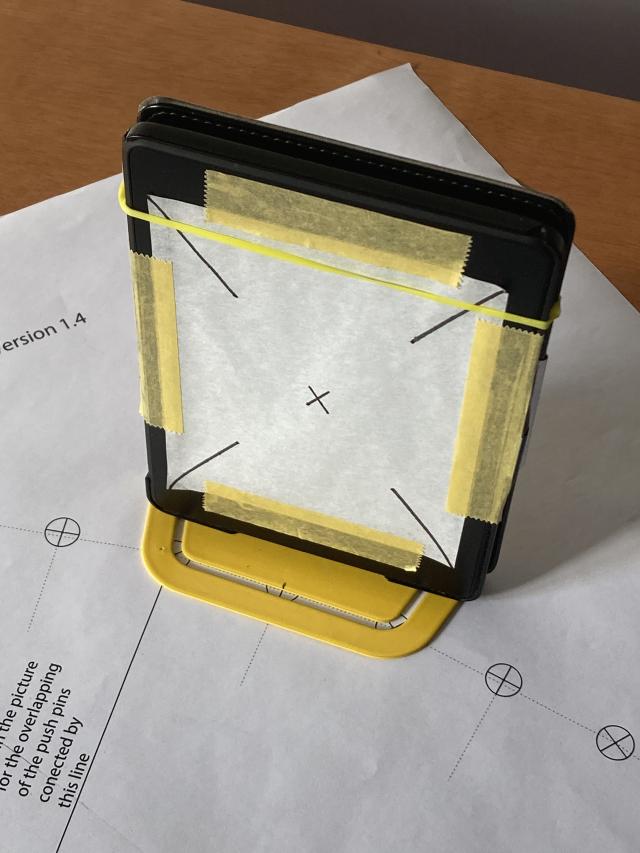

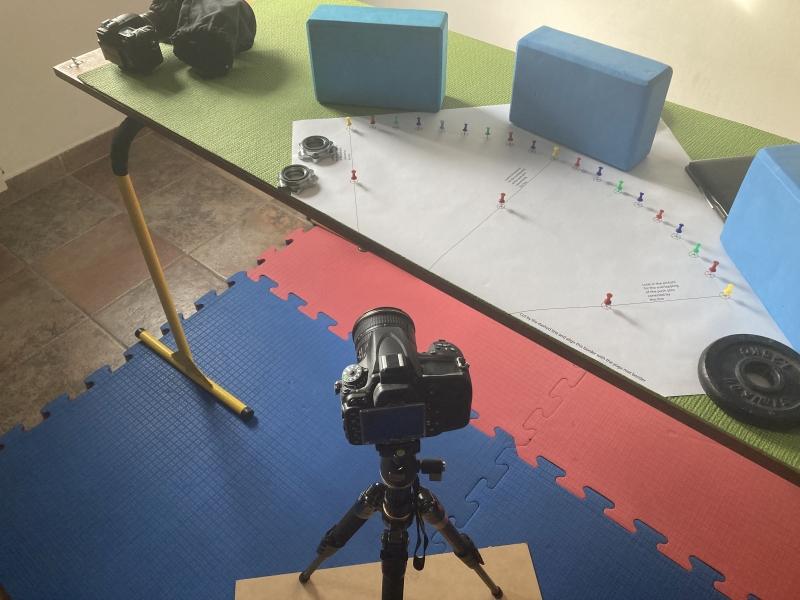

Cut the sheet by the dashed line. Place the yoga mat extended on top of the table. Place the sheet on top of the yoga mat. Align the dashed line with the yoga mat border closest to you. Place push pins on each cross. If you are gentle, the yoga mat will allow you to do that without damaging the table. Of course, other materials could be used to obtain the same result, such as cardboard, foam, nails, etc. Place the camera on the tripod. Align its optical axis with the table while looking for getting an image showing the overlapping of the three pairs of push pins, as instructed in the print. In order to take care of the line of pins at 90º relative to the optical axis, it may be of help to use the naked eye to align the entrance pupil of the lens with the pins. The alignment of the push pins only guarantees the position of the lens entrance pupil, the leveling should be cheeked with an instrument, and the alignment between the optical axis and the radius of the zenith push pin should be taken into account. In practice, the latter is achieved by aligning the camera body with the orthogonal frame made by the quarter circle.

Take a photo and transfer it to the computer, open it with ImageJ, and use the point selection tool to digitize the push pins, starting from the zenith push pin and not skipping any shown push pin. End with an additional point where the image meets the surrounding black (or the last pixel in case there is not blackness because it is not a circular hemispherical image. There is no need to follow the line formed by the push pins). Then, use the dropdown menu Analyze>Measure to open the window Results. To obtain the CSV, use File>Save As...

Note

To calibrate different directions, think of the fisheye image as an analog clock. To calibrate 3 o'clock, attach the camera to the tripod in landscape mode while leaving the quarter-circle at the lens's right side. To calibrate 9 o'clock, rotate the camera to put the quarter-circle at the lens's left side. To calibrate 12 and 6 o'clock, do the same but with the camera in portrait mode.

References

Díaz GM, Lang M, Kaha M (2024). “Simple calibration of fisheye lenses for hemipherical photography of the forest canopy.” Agricultural and Forest Meteorology, 352, 110020. ISSN 0168-1923, doi:10.1016/j.agrformet.2024.110020.

See Also

test_lens_coef(), crosscalibrate_lens(), extract_radiometry()

Examples

path <- system.file("external/Results_calibration.csv", package = "rcaiman")
calibration <- calibrate_lens(path)
coefficients(calibration$model)
calibration$lens_coef %>% signif(3)
calibration$horizon_radius

## Not run:
test_lens_coef(calibration$lens_coef) #MacOS and Windows tend to differ here
test_lens_coef(c(0.628, 0.0399, -0.0217))

## End(Not run)

.fp <- function(theta, lens_coef) {
  x <- lens_coef[1:5]
  x[is.na(x)] <- 0
  for (i in 1:5) assign(letters[i], x[i])
  a * theta + b * theta^2 + c * theta^3 + d * theta^4 + e * theta^5
}

plot(calibration$ds)
theta <- seq(0, pi/2, pi/180)
lines(theta, .fp(theta, coefficients(calibration$model)))

Perform chessboard segmentation

Description

Segment a raster into square regions of equal size arranged in a chessboard-like pattern.

Usage

chessboard(r, size)

Arguments

Details

This function divides the extent of a terra::SpatRaster into non-overlapping square segments of the given size, producing a segmentation map where each segment has a unique integer label. It can be an alternative to sky_grid_segmentation() in special cases.

Value

terra::SpatRaster with one layer and integer values, where each unique value corresponds to a square-segment ID.

Examples

caim <- read_caim()
seg <- chessboard(caim, 20)
plot(caim$Blue)
plot(extract_feature(caim$Blue, seg))

CIE sky image

Description

Generate an image of relative radiance or luminance based on the CIE General Sky model.

Usage

cie_image(z, a, sun_angles, sky_coef)

Arguments

Value

terra::SpatRaster with one layer whose pixel values represent relative luminance or radiance across the sky hemisphere, depending on whether the data used to obtain sky_coef was luminance or radiance.

Note

Coefficient sets and formulation are available in cie_table.

Examples

z <- zenith_image(50, lens())
a <- azimuth_image(z)
sky_coef <- cie_table[4,1:5] %>% as.numeric()
sun_angles <- c(z = 45, a = 0)
plot(cie_image(z, a, sun_angles, sky_coef))

Set of 15 CIE Standard Skies

Description

The Commission Internationale de l’Éclairage (CIE; International Commission on Illumination) standard (CIE 2004) defines 15 pre-calibrated sky luminance distributions, each described by a pair of analytical functions, the gradation function \Phi(\theta) = 1 + a \cdot \exp\left(\frac{b}{\cos\theta}\right), and the indicatrix function f(\chi) = 1 + c \cdot \left[ \exp(d \cdot \chi) - \exp\left(d \cdot \frac{\pi}{2}\right) \right] + e \cdot \cos^2\chi. Combined, they can predict the relative radiance \rho_R in any sky direction (\theta, \phi) as: \hat{\rho_R}^{\circ}(\theta, \phi) = \frac{\Phi(\theta) \cdot f(\chi(\theta, \phi; \theta_\odot, \phi_\odot))} {\Phi(0) \cdot f(\chi(\theta, \phi; 0, 0))} , where \theta is the zenith angle, \phi is the azimuth angle, and \theta_\odot, \phi_\odot are the zenith and azimuth of the sun disk.

Usage

cie_table

Format

data.frame with 15 rows and 8 columns:

a

gradation function parameter.

b

gradation function parameter.

c

indicatrix function parameter.

d

indicatrix function parameter.

e

indicatrix function parameter.

indicatrix_group

factor with six categories and numerical tags.

general_sky_type

factor with three categories: "Overcast", "Clear", and "Partly cloudy".

description

user-friendly description of the sky type.

Source

Li et al. (2016)

References

CIE (2004). “ISO 15469:2004(E) / CIE S 011/E:2003 - Spatial distribution of daylight — CIE standard general sky.” https://www.iso.org/standard/38608.html. International Standard.

Li DHW, Lou S, Lam JC, Wu RHT (2016). “Determining solar irradiance on inclined planes from classified CIE (International Commission on Illumination) standard skies.” Energy, 101, 462–470. doi:10.1016/j.energy.2016.02.054.

Calculate complementary gradients

Description

Compute three color-opponent gradients to enhance the visual separation between sky and canopy in hemispherical photographs, particularly under diffuse light or complex cloud patterns.

Usage

complementary_gradients(caim)

Arguments

Details

The method exploits chromatic differences between the red, green, and blue bands, following a simplified opponent-color logic. Each gradient is normalized by total brightness and modulated by a logistic contrast function to reduce the influence of underexposed regions:

• "green_magenta" = (R - G + B) / (R + G + B) · logistic(brightness)

• "yellow_blue" = (-R - G + B) / (R + G + B) · logistic(brightness)

• "red_cyan" = (-R + G + B) / (R + G + B) · logistic(brightness)

The logistic(brightness) term is computed as:

\text{logistic}(x) = \frac{1}{1 + \exp\left(-\frac{x - q_{0.1}}{\mathrm{IQR}}\right)}

where q_{0.1} is the 10th percentile of brightness values (x = R + G + B), and IQR is their interquartile range.

This weighting suppresses gradients in poorly exposed regions to reduce spurious values caused by low signal-to-noise ratios.

Value

Numeric terra::SpatRaster with three layers and the same geometry as caim. The layers ("green_magenta", "yellow_blue", "red_cyan") are chromatic gradients modulated by brightness.

Note

This function is part of a paper under preparation.

References

There are no references for Rd macro ⁠\insertAllCites⁠ on this help page.

Examples

## Not run:
caim <- read_caim()
com <- complementary_gradients(caim)
plot(com)

## End(Not run)

Calculate canopy openness

Description

Calculate canopy openness from a binarized hemispherical image with angular coordinates.

Usage

compute_canopy_openness(bin, z, a, m = NULL, angle_width = 10)

Arguments

Details

Canopy openness is computed following the equation from Gonsamo et al. (2011):

CO = \sum_{i = 1}^{N} GF(\phi_i, \theta_i) \cdot \frac{\cos(\theta_{1,i}) - \cos(\theta_{2,i})}{n_i}

where GF(\phi_i, \theta_i) is the gap fraction in cell i, \theta_{1,i} and \theta_{2,i} are the lower and upper zenith angles of the cell, n_i is the number of cells in the corresponding zenith ring, and N is the total number of cells.

When a mask is provided via the m argument, the equation is adjusted to compensate for the reduced area of the sky vault:

CO = \frac{\sum_{i=1}^{N} GF(\phi_i, \theta_i) \cdot w_i} {\sum_{i=1}^{N} w_i} \quad \text{with} \quad w_i = \frac{\cos(\theta_{1,i}) - \cos(\theta_{2,i})}{n_i}

The denominator ensures that the resulting openness value remains scale-independent. Without this normalization, masking would lead to underestimation, as the numerator alone assumes full hemispherical coverage.

Value

Numeric vector of length one, constrained to the range [0, 1].

References

Gonsamo A, Walter JN, Pellikka P (2011). “CIMES: A package of programs for determining canopy geometry and solar radiation regimes through hemispherical photographs.” Computers and Electronics in Agriculture, 79(2), 207–215. doi:10.1016/j.compag.2011.10.001.

Examples

caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- select_sky_region(z, 0, 70)
bin <- binarize_with_thr(caim$Blue, thr_isodata(caim$Blue[m]))
plot(bin)
compute_canopy_openness(bin, z, a, m, 10)

Generate conventional-lens-like image

Description

Create an RGB image that resembles a photo taken with a conventional lens, using a small patch from the example hemispherical image.

Usage

conventional_lens_image()

Details

This is a fixed crop and reorientation of read_caim(). It does not perform any re-projection. Intended for documentating functions.

The following code was used to define the region:

caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

m <- rast(z)
m[] <- calc_spherical_distance(
  z[] * pi / 180,
  a[] * pi / 180,
  1,# hinge-angle
  90 * pi / 180
)
m <- !binarize_with_thr(m, 30 * pi / 180)
m[is.na(z)] <- 0
m

x11()
plot(m * caim$Blue)
za <- click(c(z, a))
za
row_col <- row_col_from_zenith_azimuth(z, a, za[,1], za[,2])
plot(caim$Blue)
points(row_col$col, nrow(caim) - row_col$row, col = 2, pch = 10)
mn_y <- min(nrow(caim) -row_col$row)
mx_y <- max(nrow(caim) -row_col$row)
mn_x <- min(row_col$col)
mx_x <- max(row_col$col)
r <- terra::crop(caim$Blue, terra::ext(mn_x, mx_x, mn_y, mx_y))
plot(r)

Value

Three-layer terra::SpatRaster with bands in RGB order.

See Also

read_caim()

Examples

conventional_lens_image()

Correct vignetting effect

Description

Apply a vignetting correction to an image using a polynomial model.

Usage

correct_vignetting(r, z, lens_coef_v)

Arguments

Details

Vignetting is the gradual reduction of image brightness toward the periphery. This function corrects it by applying a device-specific correction as a function of the zenith angle at each pixel.

Value

terra::SpatRaster with the same content as r but with pixel values adjusted to correct for vignetting, preserving all other properties (layers, names, extent, and CRS).

Examples

## Not run:
path <- system.file("external/APC_0836.jpg", package = "rcaiman")
caim <- read_caim(path)
z <- zenith_image(2132, lens("Olloclip"))
a <- azimuth_image(z)
zenith_colrow <- c(1063, 771)

caim <- expand_noncircular(caim, z, zenith_colrow)
m <- !is.na(caim$Red) & !is.na(z)
caim[!m] <- 0

bin <- binarize_with_thr(caim$Blue, thr_isodata(caim$Blue[m]))
display_caim(caim$Blue, bin)

caim <- invert_gamma_correction(caim, 2.2)
caim <- correct_vignetting(caim, z, c(-0.0546, -0.561, 0.22)) %>%
        normalize_minmax()

## End(Not run)

Crop a canopy image

Description

Extracts a rectangular region of interest (ROI) from a canopy image. This function complements read_caim() and read_caim_raw().

Usage

crop_caim(r, upper_left = NULL, width = NULL, height = NULL)

Arguments

Value

terra::SpatRaster object containing the same layers and values as r but restricted to the selected ROI, preserving all other properties.

Note

rcaiman uses terra without geographic semantics: rasters are kept with unit resolution (cell size = 1) and a standardized extent ext(0, ncol, 0, nrow) with CRS EPSG:7589.

Examples

caim <- read_caim()
ncell(caim)
caim <- crop_caim(caim, c(231,334), 15, 10)
ncell(caim)

Cross-calibrate lens

Description

Given two photographs taken from the same point (matching entrance pupils and aligned optical axes), with calibrated and uncalibrated cameras, derives a polynomial projection for the uncalibrated device. Intended for cases where a camera calibrated with a method of higher accuracy than calibrate_lens() is available, or when there is a main camera to which all other devices should be adjusted.

Points must be digitized in tandem with ImageJ and saved as CSV files. See calibrate_lens() for background and general concepts.

Usage

crosscalibrate_lens(
  path_to_csv_uncal,
  path_to_csv_cal,
  zenith_colrow_uncal,
  zenith_colrow_cal,
  diameter_cal,
  lens_coef,
  degree = 3
)

Arguments

Details

Estimate a lens projection for an uncalibrated camera by referencing a calibrated camera photographed from the exact same location.

Value

List with components:

ds

data.frame with zenith angle (theta, radians) and pixel radius (px) from the uncalibrated camera.

model

lm object: polynomial fit of px ~ theta.

horizon_radius

numeric vector of length one. Pixel radius at 90 deg.

lens_coef

numeric vector. Distortion coefficients normalized by horizon_radius.

See Also

calibrate_lens(), calc_zenith_colrow()

Defuzzify a fuzzy classification

Description

Converts fuzzy membership values into a binary classification using a regional approach that preserves aggregation consistency between the fuzzy and binary representations.

Usage

defuzzify(mem, segmentation)

Arguments

Details

The conversion is applied within segments defined by segmentation, ensuring that, in each segment, the aggregated Boolean result matches the aggregated fuzzy value. This approach is well suited for converting subpixel estimates, such as gap fraction, into binary outputs.

Value

Logical terra::SpatRaster of the same dimensions as mem, where each pixel value represents the binary version of mem after applying the regional defuzzification procedure.

Note

This method is also available in the HSP software package. See hsp_compat().

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

path <- system.file("external/example.txt", package = "rcaiman")
sky_cie <- read_sky_cie(gsub(".txt", "", path), z, a)

sky_above <- ootb_sky_above(sky_cie$model$rr$sky_points, z, a, sky_cie)

ratio <- r / sky_above$dn_raster
ratio <- normalize_minmax(ratio, 0, 1, TRUE)
plot(ratio)
g <- sky_grid_segmentation(z, a, 10)
bin2 <- defuzzify(ratio, g)
plot(bin2) # unsatisfactory results due to light conditions

## End(Not run)

Display a canopy image

Description

Wrapper for EBImage::display() that streamlines the visualization of canopy images, optionally overlaying binary masks and segmentation borders. It is intended for quick inspection of processed or intermediate results in a graphical viewer.

Usage

display_caim(caim = NULL, bin = NULL, g = NULL)

Arguments

Value

Invisible NULL. Called for side effects (image viewer popup).

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
r <- normalize_minmax(caim$Blue)
g <- ring_segmentation(z, 30)
bin <- binarize_by_region(r, g, method = "thr_isodata")
display_caim(caim$Blue, bin, g)

## End(Not run)

Estimate sun angular coordinates

Description

Estimates the sun’s zenith and azimuth angles (deg) from a canopy hemispherical photograph, using either direct detection of the solar disk or indirect cues from the circumsolar region.

Usage

estimate_sun_angles(
  r,
  z,
  a,
  bin,
  g,
  angular_radius_sun = 30,
  method = "assume_obscured"
)

Arguments

Details

This function can operate under two alternative assumptions for estimating the sun position:

Veiled sun

The solar disk is visible or partially obscured; the position is inferred from localized brightness peaks.

Obscured sun

The solar disk is not visible; the position is inferred from radiometric and spatial cues aggregated over the circumsolar region.

When method = "assume_veiled", g and angular_radius_sun are ignored. Estimates refer to positions above the horizon; therefore, estimated angles may require further manipulation if the photograph was acquired under crepuscular light.

Value

Named numeric vector of length two, with names z and a, representing the sun’s zenith and azimuth angles (in degrees).

Note

A scientific article presenting and validating this method is currently under preparation.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)

g <- sky_grid_segmentation(z, a, 10)
sun_angles <- estimate_sun_angles(r, z, a, bin, g,
                                  angular_radius_sun = 30)
row_col <- row_col_from_zenith_azimuth(z, a,
                                       sun_angles["z"],
                                       sun_angles["a"])
plot(caim$Blue)
points(row_col[1,2], nrow(caim) - row_col[1,1], col = "yellow",
       pch = 8, cex = 3)

## End(Not run)

Expand non-circular

Description

Add NA margins to a hemispherical photograph to align radiance at the zenith with the image center. In this context, “zenith” denotes the location in the image that corresponds to the projection of the vertical direction when the optical axis is aligned vertically. Intended for non-circular images.

Usage

expand_noncircular(caim, z, zenith_colrow)

Arguments

Value

terra::SpatRaster with the same layers and pixel values as caim, but with NA margins added to center the zenith.

Note

rcaiman uses terra without geographic semantics: rasters are kept with unit resolution (cell size = 1) and a standardized extent ext(0, ncol, 0, nrow) with CRS EPSG:7589.

Examples

## Not run:
# Non-circular fisheye images from a smartphone with an auxiliary Lens
# (also applicable to non-circular fisheye images from DSLR cameras)
path <- system.file("external/APC_0836.jpg", package = "rcaiman")
caim <- read_caim(path)
z <- zenith_image(2132/2,  lens("Olloclip"))
a <- azimuth_image(z)
zenith_colrow <- c(1063, 771)/2
caim <- expand_noncircular(caim, z, zenith_colrow)
plot(caim$Blue, col = seq(0, 1, 1/255) %>% grey())
m <- !is.na(caim$Red) & !is.na(z)
plot(m, add = TRUE, alpha = 0.3, legend = FALSE)

## End(Not run)

Extract digital numbers from sky points

Description

Obtain digital numbers from a raster at positions defined by sky points, with optional local averaging.

Usage

extract_dn(r, sky_points, use_window = TRUE)

Arguments

Details

Wraps terra::extract() to support a 3 \times 3 window centered on each target pixel (local mean). When it is disabled, only the central pixel value is retrieved.

Value

data.frame containing the original sky_points plus one column per layer in r (named after the layers).

Note

For instructions on manually digitizing sky points, see the “Digitizing sky points with ImageJ” and “Digitizing sky points with QGIS” sections in fit_cie_model().

See Also

extract_sky_points()

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# See fit_cie_model() for details on below file
path <- system.file("external/sky_points.csv",
                    package = "rcaiman")
sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")
head(sky_points)
plot(caim$Blue)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)

sky_points <- extract_dn(caim, sky_points)
head(sky_points)

# To aggregate DNs across points (excluding 'row' and 'col'):
apply(sky_points[, -(1:2)], 2, mean, na.rm = TRUE)

## End(Not run)

Extract feature

Description

Extract a numeric or logical summary from segmented raster regions using a user-defined reducer, returning one value per segment as a raster map or a named vector.

Usage

extract_feature(
  r,
  segmentation,
  fun = mean,
  return = "raster",
  ignore_label_0 = TRUE
)

Arguments

Details

Segments labeled 0 can be ignored via ignore_label_0 = TRUE. The function in fun must return a single numeric or logical value for any input vector (e.g., mean, median, or a custom reducer).

Value

If return = "raster", a terra::SpatRaster where each pixel holds its segment’s feature value. If return = "vector", a named numeric (or logical) vector with one value per segment.

Examples

r <- read_caim()
z <- zenith_image(ncol(r),lens())
a <- azimuth_image(z)
g <- sky_grid_segmentation(z, a, 10)
print(extract_feature(r$Blue, g, return = "vector"))
# plot(extract_feature(r$Blue, g, return = "raster"))

Extract radiometry data for calibration

Description

Buid a datasets for vignetting modeling by sistematically extracting radiometry from images taken with the aid of a portable light source and the calibration board detailed in calibrate_lens().

Usage

extract_radiometry(l, size_px = NULL)

Arguments

Value

data.frame con dos columnas:

theta

zenith angle en radianes.

radiometry

digital number normalizado.

Guidance

Lenses have the inconvenient property of increasingly attenuating light along the direction orthogonal to the optical axis. This phenomenon is known as the vignetting effect and varies with lens model and aperture setting. The method outlined here, known as the simple method, is explained in details in Díaz et al. (2024). Next explanation might serve mostly as a quick recap of it.

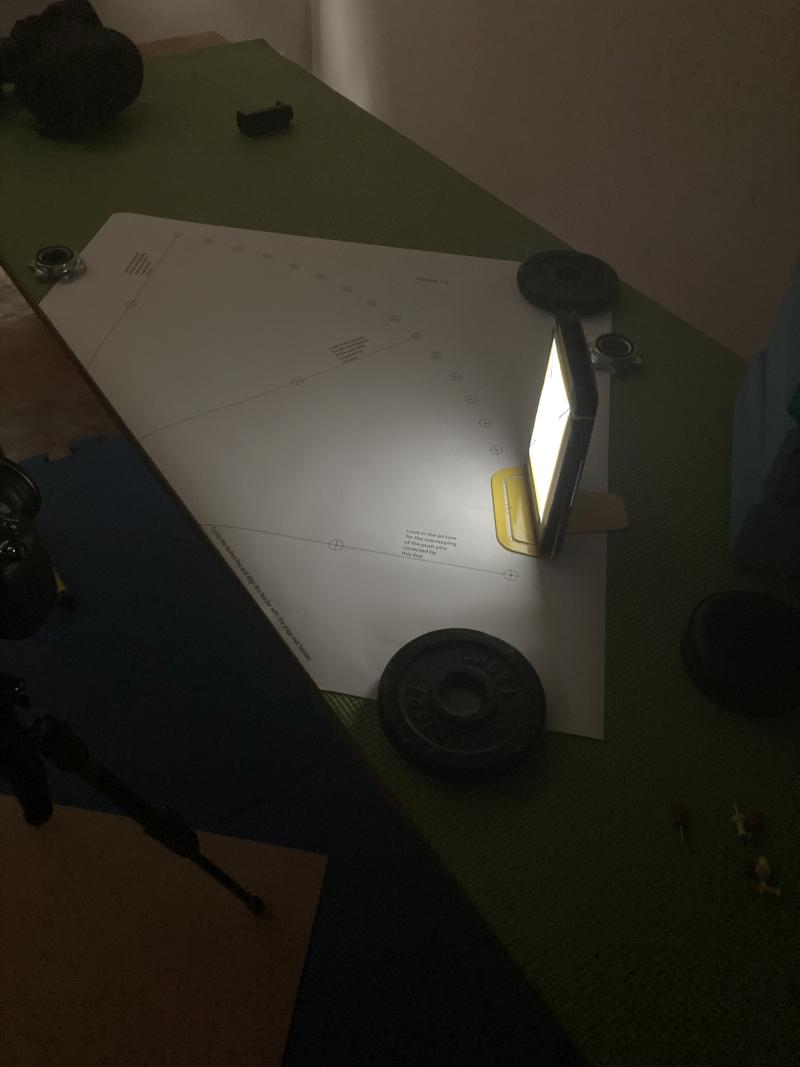

The development of the simple method was done with a Kindle Paperwhite eBooks reader of 6" with built-in light. However, an iPhone 6 plus was also tested in the early stages of development and no substantial differences were observed. A metal bookends desk book holder was used to fasten the eBook reader upright and a semi-transparent paper to favor a Lambertian light distribution. In addition, the latter was used to draw on in order to guide pixel sampling. The book holder also facilitated the alignment of the screen with the dotted lines of the printed quarter-circle. As a general guideline, a wide variety of mobile devices could be used as light sources, but if scattered data points are obtained with it, then other light sources should be tested in order to double check that the light quality is not the reason for points scattering.

With the room only illuminated by the portable light source, nine photographs should be taken with the light source located in the equivalent to 0, 10, 20, 30, 40, 50, 60, 70, and 80 degrees of zenith angle, respectively. Camera configuration should be in manual mode and set with the aperture (f/number) for which a vignetting function is required. The shutter speed should be regulated to obtain light-source pixels with middle grey values. The nine photographs should be taken without changing the camera configuration and the light conditions. This code exemplifies how to use the function to obtain data and base R functions to obtain the vignetting function (f_v).

zenith_colrow <- c(1500, 997)
diameter <- 947*2
z <- zenith_image(diameter, c(0.689, 0.0131, -0.0295))
a <- azimuth_image(z)

.read_raw <- function(path_to_raw_file) {
  r <- read_caim_raw(path_to_raw_file, only_blue = TRUE)
  r <- crop_caim(r, zenith_colrow - diameter/2, diameter, diameter)
  r <- fisheye_to_equidistant(r, z, a, m, radius = diameter/2,
                              k = 1, p = 1, rmax = 100)
}

l <- Map(.read_raw, dir("raw/up/", full.names = TRUE))
up_data <- extract_radiometry(l)
l <- Map(.read_raw, dir("raw/down/", full.names = TRUE))
down_data <- extract_radiometry(l)
l <- Map(.read_raw, dir("raw/right/", full.names = TRUE))
right_data <- extract_radiometry(l)
l <- Map(.read_raw, dir("raw/left/", full.names = TRUE))
left_data <- extract_radiometry(l)

ds <- rbind(up_data, down_data, right_data, left_data)

plot(ds, xlim = c(0, pi/2), ylim= c(0.5,1.05),
      col = c(rep(1,9),rep(2,9),rep(3,9),rep(4,9)))
legend("bottomleft", legend = c("up", "down", "right", "left"),
       col = 1:4, pch = 1)

fit <- lm((1 - ds$radiometry) ~ poly(ds$theta, 3, raw = TRUE) - 1)
summary(fit)
coef <- -fit$coefficients #did you notice the minus sign?
.fv <- function(x) 1 + coef[1] * x + coef[2] * x^2 + coef[3] * x^3
curve(.fv, add = TRUE, col = 2)
coef

Once one of the aperture settings is calibrated, it can be used to calibrate all the rest. To do so, the equipment should be used to take photographs in all desired exposition and without moving the camera, including the aperture already calibrated and preferably under an open sky in stable diffuse light conditions. Below code can be used as a template.

zenith_colrow <- c(1500, 997)
diameter <- 947*2
z <- zenith_image(diameter, c(0.689, 0.0131, -0.0295))
a <- azimuth_image(z)

files <- dir("raw/", full.names = TRUE)
l <- list()
for (i in seq_along(files)) {
  if (i == 1) {
    # because the first aperture was the one already calibrated
    .read_raw <- function(path_to_raw_file) {
        r <- read_caim_raw(path_to_raw_file, only_blue = TRUE)
        r <- crop_caim(r, zenith_colrow - diameter/2, diameter, diameter)
        r <- correct_vignetting(r, z, c(0.0302, -0.320, 0.0908))
        r <- fisheye_to_equidistant(r, z, a, m, radius = diameter/2,
                                    k = 1, p = 1, rmax = 100)
      }
  } else {
      .read_raw <- function(path_to_raw_file) {
          r <- read_caim_raw(path_to_raw_file, only_blue = TRUE)
          r <- crop_caim(r, zenith_colrow - diameter/2, diameter, diameter)
          r <- fisheye_to_equidistant(r, z, a, m, radius = diameter/2,
                                      k = 1, p = 1, rmax = 100)
        }
  }
  l[[i]] <- .read_raw(files[i])
}

ref <- l[[1]]
rings <- ring_segmentation(zenith_image(ncol(ref), lens()), 3)
theta <- seq(1.5, 90 - 1.5, 3) * pi/180

.fun <- function(r) {
  r <- extract_feature(r, rings, return = "vector")
  r/r[1]
}

l <- Map(.fun, l)

.fun <- function(x) {
  x / l[[1]][] # because the first is the one already calibrated
}
radiometry <- Map(.fun, l)

l <- list()
for (i in 2:length(radiometry)) {
  l[[i-1]] <- data.frame(theta = theta, radiometry = radiometry[[i]][])
}
ds <- l[[1]]
head(ds)

The result is one dataset (ds) for each file. This is all what it is needed before using base R functions to fit a vignetting function

Note

This function does not fit the vignetting function itself. The output is a dataset to be used in subsequent modeling steps. See above sections for guidance.

References

Díaz GM, Lang M, Kaha M (2024). “Simple calibration of fisheye lenses for hemipherical photography of the forest canopy.” Agricultural and Forest Meteorology, 352, 110020. ISSN 0168-1923, doi:10.1016/j.agrformet.2024.110020.

Extract digital numbers at sky points and normalize by estimated zenith radiance

Description

Compute relative radiance at selected sky points by dividing their digital numbers (DN) by an estimated zenith DN.

Usage

extract_rr(r, z, a, sky_points, no_of_points = 3, use_window = TRUE)

Arguments

Value

List with named elements:

zenith_dn

numeric. Estimated DN at the zenith.

sky_points

data.frame with columns row, col, a, z, dn, and rr (pixel location, angular coordinates, extracted DN, and relative radiance). If no_of_points is NULL, zenith_dn = 1 and dn = rr.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# See fit_cie_model() for details on the CSV file
path <- system.file("external/sky_points.csv",
                    package = "rcaiman")
sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")
head(sky_points)

plot(caim$Blue)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
rr <- extract_rr(caim$Blue, z, a, sky_points, 1)
points(rr$sky_points$col, nrow(caim) - rr$sky_points$row, col = 3, pch = 0)

## End(Not run)

Extract sky points

Description

Sample representative sky pixels for use in model fitting or interpolation.

Usage

extract_sky_points(r, bin, g, dist_to_black = 3, method = "grid")

Arguments

Details

Two sampling strategies are provided:

"grid"

select one sky point per cell of a segmentation grid (g) as the brightest pixel marked TRUE in bin, provided the cell’s white pixel count exceeds one fourth of the mean across valid cells.

"local_max"

detect local maxima within a fixed 9 \times 9 window, restricted to pixels marked TRUE in bin, after removing patches of connected TRUE pixels that are implausible based on fixed area/size thresholds. Each detected maximum is taken as a sky point.

Use "grid" to promote an even, representative spatial distribution (good for model fitting), and "local_max" to be exhaustive for interpolation.

Value

data.frame with columns row and col.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)

g <- sky_grid_segmentation(z, a, 10)
sky_points <- extract_sky_points(r, bin, g,
                                 dist_to_black = 3)
plot(bin)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)

## End(Not run)

Fisheye to equidistant

Description

Reproject a hemispherical image from fisheye to equidistant projection (also known as polar projection) to standardize its geometry for subsequent analysis and comparison between images.

Usage

fisheye_to_equidistant(r, z, a, m, radius = NULL, k = 1, p = 1, rmax = 100)

Arguments

Details

Pixel values and coordinates are treated as 3D points and reprojected using Cartesian interpolation. Internally, this function uses lidR::knnidw() as interpolation engine, so arguments k, p, and rmax are passed to it without modification.

Value

terra::SpatRaster with the same number of layers as r, reprojected to equidistant projection with circular shape and radius given by 'radius

Examples

## Not run:
path <- system.file("external/APC_0836.jpg", package = "rcaiman")
caim <- read_caim(path)
calc_diameter(c(0.801, 0.178, -0.179), 1052, 86.2)
z <- zenith_image(2216,  c(0.801, 0.178, -0.179))
a <- azimuth_image(z)
zenith_colrow <- c(1063, 771)

caim <- expand_noncircular(caim, z, zenith_colrow)
m <- !is.na(caim$Red) & select_sky_region(z, 0, 86.2)
caim[!m] <- 0
m2 <- fisheye_to_equidistant(m, z, a, !is.na(z), radius = 600)
m2 <- binarize_with_thr(m2, 0.5) #to turn it logical
caim2[!m2] <- 0

plot(caim)

## End(Not run)

Fisheye to panoramic

Description

Reprojects a fisheye (hemispherical) image into a panoramic view using a cylindrical projection. The output is standardized so that rows correspond to zenith angle bands and columns to azimuthal sectors.

Usage

fisheye_to_pano(r, z, a, fun = mean, angle_width = 1)

Arguments

Details

This function computes a cylindrical projection by aggregating pixel values according to their zenith and azimuth angles. Internally, it creates a segmentation grid with sky_grid_segmentation() and applies extract_feature() to compute a summary statistic (e.g., mean) of pixel values within each cell.

Value

terra::SpatRaster with rows representing zenith angle bands and columns representing azimuthal sectors. The number of layers and names matches that of the input r.

Note

An early version of this function was used in Díaz et al. (2021).

References

Díaz GM, Negri PA, Lencinas JD (2021). “Toward making canopy hemispherical photography independent of illumination conditions: A deep-learning-based approach.” Agricultural and Forest Meteorology, 296, 108234. doi:10.1016/j.agrformet.2020.108234.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
pano <- fisheye_to_pano(caim, z, a)
plotRGB(pano %>% normalize_minmax() %>% multiply_by(255))

## End(Not run)

Fit CIE sky model

Description

Fit the CIE sky model to data sampled from a canopy photograph using general-purpose optimization.

Usage

fit_cie_model(
  rr,
  sun_angles,
  custom_sky_coef = NULL,
  std_sky_no = NULL,
  general_sky_type = NULL,
  method = c("Nelder-Mead", "BFGS", "CG", "SANN")
)

Arguments

Details

The method is based on Lang et al. (2010). For best results, the input data should show a linear relation between digital numbers and the amount of light reaching the sensor. See extract_radiometry() and read_caim_raw() for details. As a compromise solution, invert_gamma_correction() can be used.

Value

List with the following components:

rr

The input rr with an added pred column in sky_points, containing predicted values.

opt_result

List returned by stats::optim().

coef

Numeric vector of length five. CIE model coefficients.

sun_angles

Numeric vector of length two. Sun zenith and azimuth (degrees).

method

Character string. Optimization method used.

start

Numeric vector of length five. Starting parameters.

metric

Numeric value. Mean squared deviation as in Gauch et al. (2003).

Background

This function is based on Lang et al. (2010). In theory, the best result would be obtained with data showing a linear relation between digital numbers and the amount of light reaching the sensor. See extract_radiometry() and read_caim_raw() for further details. As a compromise solution, invert_gamma_correction() can be used.

Digitizing sky points with ImageJ

The point selection tool of ‘ImageJ’ software can be used to manually digitize points and create a CSV file from which to read coordinates (see Examples). After digitizing the points on the image, this is a recommended workflow: 1. Use the dropdown menu Analyze > Measure to open the Results window. 2. Use File > Save As... to obtain the CSV file.

Use this code to create the input sky_points from ImageJ data:

sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")

Digitizing sky points with QGIS

To use the QGIS software to manually digitize points, drag and drop the image in an empty project, create an new vector layer, digitize points manually, save the editions, and close the project.

To create the new vector layer, this is a recommended workflow:

1. Fo to the dropdown menu Layer > Create Layer > New Geopackage Layer...

2. Choose "point" in the Geometry type dropdown list

3. Make sure the CRS is EPSG:7589.

4. Click on the Toogle Editing icon

5. Click on the Add Points Feature icon.

Use this code to create the input sky_points from QGIS data:

sky_points <- terra::vect(path)
sky_points <- terra::extract(caim, sky_points, cells = TRUE)
sky_points <- terra::rowColFromCell(caim, sky_points$cell) %>% as.data.frame()
colnames(sky_points) <- c("row", "col")

References

Gauch HG, Hwang JTG, Fick GW (2003). “Model evaluation by comparison of model‐based predictions and measured values.” Agronomy Journal, 95(6), 1442–1446. ISSN 1435-0645, doi:10.2134/agronj2003.1442.

Lang M, Kuusk A, Mõttus M, Rautiainen M, Nilson T (2010). “Canopy gap fraction estimation from digital hemispherical images using sky radiance models and a linear conversion method.” Agricultural and Forest Meteorology, 150(1), 20–29. doi:10.1016/j.agrformet.2009.08.001.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# Manual method following Lang et al. (2010)
path <- system.file("external/sky_points.csv",
                    package = "rcaiman")
sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")
head(sky_points)
plot(caim$Blue)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)

# x11()
# plot(caim$Blue)
# sun_angles <- click(c(z, a), 1) %>% as.numeric()
sun_angles <- c(z = 49.5, a = 27.4) #taken with above lines then hardcoded

sun_row_col <- row_col_from_zenith_azimuth(z, a,
                                           sun_angles["z"],
                                           sun_angles["a"])
points(sun_row_col[2], nrow(caim) - sun_row_col[1],
       col = "yellow", pch = 8, cex = 3)

rr <- extract_rr(caim$Blue, z, a, sky_points)

set.seed(7)
model <- fit_cie_model(rr, sun_angles,
                           general_sky_type = "Clear")

plot(model$rr$sky_points$rr, model$rr$sky_points$pred)
abline(0,1)
lm(model$rr$sky_points$pred~model$rr$sky_points$rr) %>% summary()

sky <- cie_image(z, a, model$sun_angles, model$coef) * model$rr$zenith_dn

plot(sky)
ratio <- caim$Blue/sky
plot(ratio)
plot(ratio > 1.05)
plot(ratio > 1.15)

## End(Not run)

Fit cone-shaped model

Description

Fit a polynomial model to predict relative radiance from spherical coordinates using data sampled from a canopy photograph.

Usage

fit_coneshaped_model(sky_points, method = "zenith_n_azimuth")

Arguments

Details

This model requires only sky_points, making it useful in workflows where sun position cannot be reliably estimated, such as in apply_by_direction(). Otherwise, fit_cie_model() is a better choice.

Depending on method, it can fit:

A zenith-only quadratic model

sDN = a + b\theta + c\theta^2

A zenith-plus-azimuth model, adding sinusoidal terms

sDN = a + b\theta + c\theta^2 + d\sin(\phi) + e\cos(\phi)

See Díaz and Lencinas (2018) for details on the full model.

Value

List with the following components:

fun

Function taking zenith and azimuth (degrees) and returning predicted relative radiance.

model

lm object fitted by stats::lm().

Returns NULL (with a warning) if the number of input points is fewer than 20.

References

Díaz GM, Lencinas JD (2018). “Model-based local thresholding for canopy hemispherical photography.” Canadian Journal of Forest Research, 48(10), 1204–1216. doi:10.1139/cjfr-2018-0006.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)

g <- sky_grid_segmentation(z, a, 10, first_ring_different = TRUE)
sky_points <- extract_sky_points(r, bin, g, dist_to_black = 3)
plot(bin)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
rr <- extract_rr(r, z, a, sky_points)

model <- fit_coneshaped_model(rr$sky_points)
summary(model$model)
sky_cs <- model$fun(z, a) * rr$zenith_dn
plot(sky_cs)

z_mini <- zenith_image(50, lens())
sky_cs <- model$fun(z_mini, azimuth_image(z_mini))
persp(sky_cs, theta = 90, phi = 20)


## End(Not run)

Fit a trend surface to sky digital numbers

Description

Fits a trend surface to sky digital numbers using spatial::surf.ls() as the computational workhorse.

Usage

fit_trend_surface(sky_points, r, np = 6, col_id = "dn", extrapolate = FALSE)

Arguments

Details

This function models the variation in digital numbers across the sky dome by fitting a polynomial surface in Cartesian space. It is intended to capture smooth large-scale gradients and is more effective when called via apply_by_direction().

Value

List with named elements:

raster

terra::SpatRaster containing the fitted surface.

model

object of class trls returned by spatial::surf.ls().

r2

numeric value giving the coefficient of determination (R^2) of the fit.

References

There are no references for Rd macro ⁠\insertAllCites⁠ on this help page.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)

g <- sky_grid_segmentation(z, a, 10, first_ring_different = TRUE)
sky_points <- extract_sky_points(r, bin, g, dist_to_black = 3)
plot(bin)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
sky_points <- extract_dn(r, sky_points, use_window = TRUE)

sky_s <- fit_trend_surface(sky_points, r, np = 4, col_id = 3,
                           extrapolate = TRUE)
plot(sky_s$raster)
binarize_with_thr(r/sky_s$raster, 0.5) %>% plot()

sky_s <- fit_trend_surface(sky_points, r, np = 6, col_id = 3,
                           extrapolate = FALSE)
plot(sky_s$raster)
binarize_with_thr(r/sky_s$raster, 0.5) %>% plot()

## End(Not run)

Grow black regions in a binary mask

Description

Grow black pixels in a binary mask using a kernel of user-defined size. Useful to reduce errors associated with inter-class borders.

Usage

grow_black(bin, dist_to_black)

Arguments

Details

Expands the regions with value FALSE (typically rendered as black) in a binary image by applying a square-shaped buffer. Any white pixels (value TRUE) within a distance equal to or less than dist_to_black from a black pixel will be turned black.

Value

Logical terra::SpatRaster with the same dimensions as bin. Compared to the input bin, black regions (FALSE) have been expanded by the specified buffer distance.

Examples

## Not run:
r <- read_caim()
bin <- binarize_with_thr(r$Blue, thr_isodata(r$Blue[]))
plot(bin)
bin <- grow_black(bin, 11)
plot(bin)

## End(Not run)

HSP compatibility functions

Description

Read and write legacy files from HSP (HemiSPherical Project Manager) projects to interoperate with existing workflows. Intended for legacy support; not required when working fully within rcaiman.

Usage

hsp_read_manual_input(path_to_HSP_project, img_name)

hsp_read_opt_sky_coef(path_to_HSP_project, img_name)

hsp_write_sky_points(sky_points, path_to_HSP_project, img_name)

hsp_write_sun_coord(sun_row_col, path_to_HSP_project, img_name)

Arguments

Value

See Functions

About HSP software

HSP (introduced in (Lang et al. 2013), based on the method in (Lang et al. 2010)) runs exclusively on Windows. HSP stores pre-processed images as PGM files in the manipulate subfolder of each project (itself inside the projects folder).

Functions

hsp_read_manual_input()

read sky marks and sun position defined manually within an HSP project; returns a named list with components weight, max_points, angle, point_radius, sun_row_col, sky_points, and zenith_dn.

hsp_read_opt_sky_coef()

read optimized CIE sky coefficients from an HSP project; returns a numeric vector of length five.

hsp_write_sky_points()

write a file with sky point coordinates compatible with HSP; creates a file on disk.

hsp_write_sun_coord()

write a file with solar disk coordinates compatible with HSP; creates a file on disk.

References

Lang M, Kodar A, Arumäe T (2013). “Restoration of above canopy reference hemispherical image from below canopy measurements for plant area index estimation in forests.” Forestry Studies, 59(1), 13–27. doi:10.2478/fsmu-2013-0008.

Lang M, Kuusk A, Mõttus M, Rautiainen M, Nilson T (2010). “Canopy gap fraction estimation from digital hemispherical images using sky radiance models and a linear conversion method.” Agricultural and Forest Meteorology, 150(1), 20–29. doi:10.1016/j.agrformet.2009.08.001.

Examples

## Not run:
# NOTE: assumes the working directory is the HSP project folder (e.g., an RStudio project).

# From HSP to R in order to compare ---------------------------------------
r <- read_caim("manipulate/IMG_1013.pgm")
z <- zenith_image(ncol(r), lens())
a <- azimuth_image(z)
manual_input <- read_manual_input(".", "IMG_1013")
sun_row_col <- manual_input$sun_row_col
sun_angles <- zenith_azimuth_from_row_col(
  z, a,
  sun_row_col[1],
  sun_row_col[2]
)
sun_angles <- as.vector(sun_angles)

sky_points <- manual_input$sky_points
rr <- extract_rr(r, z, a, sky_points)
model <- fit_cie_model(rr, sun_angles)
sky <- cie_image(
  z, a,
  model$sun_angles,
  model$coef
) * model$rr$zenith_dn
plot(r / sky)

r <- read_caim("manipulate/IMG_1013.pgm")
sky_coef <- read_opt_sky_coef(".", "IMG_1013")
sky_m <- cie_image(z, a, sun_angles, sky_coef)
sky_m <- cie_sky_manual * manual_input$zenith_dn
plot(r / sky_m)

# From R to HSP  ----------------------------------------------------------
r <- read_caim("manipulate/IMG_1014.pgm")
z <- zenith_image(ncol(r), lens())
a <- azimuth_image(z)
m <- !is.na(z)
g <- sky_grid_segmentation(z, a, 10)
bin <- binarize_with_thr(caim$Blue, thr_isodata(caim$Blue[m]))
bin <- select_sky_region(z, 0, 85) & bin

sun_angles <- estimate_sun_angles(r, z, a, bin, g)
sun_row_col <- row_col_from_zenith_azimuth(
  z, a,
  sun_angles["z"],
  sun_angles["a"]
) %>% as.numeric()
write_sun_coord(sun_row_col, ".", "IMG_1014")

sky_points <- extract_sky_points(r, bin, g)
write_sky_points(sky_points, ".", "IMG_1014")

## End(Not run)

Interpolate in planar space

Description

Interpolate values from canopy photographs using inverse distance weighting (IDW) with k-nearest neighbors in image (planar) coordinates. A radius limits neighbor search.

Usage

interpolate_planar(sky_points, r, k = 3, p = 2, rmax = 200, col_id = "dn")

Arguments

Details

Delegates interpolation to lidR::knnidw(), passing k, p, and rmax unchanged. Defaults follow Lang et al. (2013). Note that rmax is given in pixels but intended to approximate 15–20 deg in angular terms. Therefore, this value needs fine-tuning based on image resolution and lens projection. For best results, the interpolated quantity should be linearly related to scene radiance; see extract_radiometry() and read_caim_raw(). For JPEG images, consider invert_gamma_correction() to reverse gamma encoding.

Value

Numeric terra::SpatRaster with one layer and the same geometry as r.

Note

No consistency checks are performed to ensure that sky_points and r are geometrically compatible. Incorrect combinations may lead to invalid outputs.

References

Lang M, Kodar A, Arumäe T (2013). “Restoration of above canopy reference hemispherical image from below canopy measurements for plant area index estimation in forests.” Forestry Studies, 59(1), 13–27. doi:10.2478/fsmu-2013-0008.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)

g <- sky_grid_segmentation(z, a, 10)
sky_points <- extract_sky_points(r, bin, g, dist_to_black = 3)
plot(bin)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
sky_points <- extract_dn(r, sky_points)

sky <- interpolate_planar(sky_points, r, col_id = 3)
plot(sky)
plot(r/sky)

## End(Not run)

Interpolate in spherical space

Description

Interpolate values from canopy photographs using inverse distance weighting (IDW) with k-nearest neighbors, computing distances in spherical coordinates that map the sky vault. Optionally blend with a model surface to fill voids.

Usage

interpolate_spherical(
  sky_points,
  z,
  a,
  filling_source = NULL,
  w = 1,
  k = 3,
  p = 2,
  angular_radius = 20,
  rule = "any",
  size = 50
)

Arguments

Details

Distances are great-circle distances on the sky vault. When filling_source is provided, local IDW estimates are blended with that surface following Eq. 6 in Lang et al. (2010). For efficiency, interpolation runs on a temporary low-resolution grid of size size.

Value

Numeric terra::SpatRaster with one layer of interpolated values and the geometry of z.

Note

This function assumes that sky_points and the terra::SpatRaster inputs are spatially aligned and share the same geometry. No checks are performed to enforce this.

References

Lang M, Kuusk A, Mõttus M, Rautiainen M, Nilson T (2010). “Canopy gap fraction estimation from digital hemispherical images using sky radiance models and a linear conversion method.” Agricultural and Forest Meteorology, 150(1), 20–29. doi:10.1016/j.agrformet.2009.08.001.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# Manual method following Lang et al. (2010)
path <- system.file("external/sky_points.csv",
                    package = "rcaiman")
sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")
head(sky_points)
plot(caim$Blue)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)

# x11()
# plot(caim$Blue)
# sun_angles <- click(c(z, a), 1) %>% as.numeric()
sun_angles <- c(z = 49.5, a = 27.4) #taken with above lines then hardcoded

sun_row_col <- row_col_from_zenith_azimuth(z, a,
                                           sun_angles["z"],
                                           sun_angles["a"])
points(sun_row_col[2], nrow(caim) - sun_row_col[1],
       col = "yellow", pch = 8, cex = 3)

rr <- extract_rr(caim$Blue, z, a, sky_points)

set.seed(7)
model <- fit_cie_model(rr, sun_angles,
                       general_sky_type = "Clear")

sky_cie <- cie_image(z, a, model$sun_angles, model$coef)

sky_rr <- interpolate_spherical(rr$sky_points, z, a,
                                filling_source = sky_cie,
                                w = 1,
                                k = 10,
                                p = 2,
                                angular_radius = 20,
                                rule = "any",
                                size = 50)
plot(r/sky_rr/rr$zenith_dn)

## End(Not run)

Gamma back correction of JPEG images

Description

Approximates the inversion of the gamma encoding applied to JPEG images.

Usage

invert_gamma_correction(dn, gamma = 2.2)

Arguments

Details

Digital cameras typically encode images using the sRGB color space, which applies a non-linear transformation—commonly referred to as gamma correction—to the sensor's linear luminance response. This function applies a power transformation to approximate the inverse of that encoding, restoring a response closer to linear.

Value

Same properties as dn, with values adjusted by inverse gamma correction and rescaled to the range [0, 1].

References

There are no references for Rd macro ⁠\insertAllCites⁠ on this help page.

Examples

## Not run:
path <- system.file("external/APC_0836.jpg", package = "rcaiman")
caim <- read_caim(path)
z <- zenith_image(2132,  lens("Olloclip"))
a <- azimuth_image(z)
zenith_colrow <- c(1063, 771)

caim <- expand_noncircular(caim, z, zenith_colrow)
m <- !is.na(caim$Red) & !is.na(z)
caim[!m] <- 0

bin <- binarize_with_thr(caim$Blue, thr_isodata(caim$Blue[m]))

display_caim(caim$Blue, bin)

caim <- invert_gamma_correction(caim, 2.2)

## End(Not run)

Access the lens database

Description

Retrieve projection coefficients and field-of-view (FOV, deg) for known lenses. Coefficients expect zenith angle in radians and return relative radius.

Usage

lens(type = "equidistant", return = "coef")

Arguments

Details

In upward-looking leveled hemispherical photography, the zenith corresponds to the center of a circular image whose perimeter represents the horizon, assuming a lens with a 180° field of view. The relative radius is the radial distance to a given point, expressed as a fraction of the maximum radius (i.e., the horizon). The equidistant projection model, also called polar projection, is the standard reference model, characterized by a linear relationship between zenith angle and relative radius.

Real lenses deviate from ideal projections. Following Hemisfer software, this package models deviations with polynomial functions. All angular values are in radians.

Currently available lenses:

"equidistant"

Ideal equidistant projection (Schneider et al. 2009).

"Nikkor_10.5mm"

AF DX Fisheye Nikkor 10.5mm f/2.8G ED (Pekin and Macfarlane 2009).

"Nikon_FCE9"

Nikon FC-E9 converter (Díaz et al. 2024).

"Olloclip"

Auxiliary lens for mobile devices manufactured by Olloclip (Díaz et al. 2024).

"Nikkor_8mm"

AF–S Fisheye Nikkor 8–15mm f/3.5–4.5E ED (Díaz et al. 2024).

See calibrate_lens() for fitting new projection functions.

Value

Numeric vector. Depends on return:

"coef"

Polynomial coefficients of the projection function (relative radius as a function of theta, radians).

"fov"

numeric vector of length one. Maximum field of view (deg).

References

Díaz GM, Lang M, Kaha M (2024). “Simple calibration of fisheye lenses for hemipherical photography of the forest canopy.” Agricultural and Forest Meteorology, 352, 110020. ISSN 0168-1923, doi:10.1016/j.agrformet.2024.110020.

Pekin B, Macfarlane C (2009). “Measurement of crown cover and leaf area index using digital cover photography and its application to remote sensing.” Remote Sensing, 1(4), 1298–1320. doi:10.3390/rs1041298.

Schneider D, Schwalbe E, Maas H (2009). “Validation of geometric models for fisheye lenses.” ISPRS Journal of Photogrammetry and Remote Sensing, 64(3), 259–266. doi:10.1016/j.isprsjprs.2009.01.001.

Examples

lens("Nikon_FCE9")
lens("Nikon_FCE9", return = "fov")

.fp <- function(theta, lens_coef) {
  x <- lens_coef[1:5]
  x[is.na(x)] <- 0
  for (i in 1:5) assign(letters[i], x[i])
  a * theta + b * theta^2 + c * theta^3 + d * theta^4 + e * theta^5
}

theta <- seq(0, pi/2, pi/180)
plot(theta, .fp(theta, lens()), type = "l", lty = 2,
      ylab = "relative radius")
lines(theta, .fp(theta, lens("Nikon_FCE9")))

Normalize data using min-max rescaling

Description

Rescale numeric or raster data from an expected range to the range [0, 1].

Usage

normalize_minmax(r, mn = NULL, mx = NULL, clip = FALSE)

Arguments

Value

Same properties as r, with values rescaled to the range [0, 1] if mn and mx match the range of r or extend beyond it. If clip = TRUE, values will be within [0, 1] even if this implies data loss.

Examples

normalize_minmax(read_caim())

Out-of-the-box reliable binarized image

Description

Robust binarization without parameter tuning.

Usage

ootb_bin(caim, z, a, m, parallel = TRUE)

Arguments

Details

Runs a predefined pipeline that incrementally refines a binary sky mask by combining gradient-based enhancement, local thresholding, polar segmentation, and a spectral index sensitive to sunlit canopy.

1. Enhancement. Compute complementary gradients with complementary_gradients() and build an enhancer that mixes the strongest complementary response with the blue band: mem <- mean(normalize_minmax(max(yellow_blue, red_cyan)), normalize_minmax(Blue^(1/2.2))). Gamma correction (see invert_gamma_correction()) is applied to the blue band to reduce sky brightness variability.

2. Local thresholding. Apply apply_by_direction() on mem with method = "thr_isodata" to obtain an initial binary mask. Local thresholding is required because background non-uniformity remains in the enhanced image.

3. Cleanup. Remove isolated pixels and apply a one-pixel binary dilation. This compensates small artifacts produced by band misalignment resulting from the radiometric-first policy of read_caim_raw().

4. Polar quadtree segmentation. Segment this preclassification of sky and non-sky pixels with polar_qtree() parameterized to yield circular trapezoids never smaller than 3 \times 3 degrees and to minimize segments with mixed classes.

5. Object-based image analysis. Keep segments that contain between 10 and 90 percent of sky pixels. For each kept segment, estimate a local sky reference as the maximum blue value, use it to normalize per segment (ratio <- Blue / sky_segment_max), interpret the normalization as the degree of membership to the sky class, and then defuzzify with a fixed threshold 0.5.

6. Blue–Red Index (BRI). Compute

   \mathrm{BRI} = \frac{B - R}{B + R}

   where B and R are blue and red digital numbers. BRI decreases on sunlit canopy because direct sunlight is warmer than diffuse skylight. Use a scene-adaptive threshold given by the median BRI over the current non-sky region to flip misclassified sky pixels to non-sky.

7. Zenith mask. Apply the final zenith-angle gate (e.g., keep \theta_z \le 88^\circ).

Value

Logical terra::SpatRaster (TRUE for sky, FALSE for non-sky) with the same number of rows and columns as caim.

Note

This function is part of a paper under preparation.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
bin <- ootb_bin(caim, z, a, m)
plot(bin)

## End(Not run)

Out-of-the-box above-canopy sky

Description

Generate an above‑canopy sky brightness map without manual tuning.

Usage

ootb_sky_above(sky_points, z, a, sky_cie, size = 100)

Arguments

Details

Interpolates sky brightness with IDW and k‑nearest neighbors in spherical space via interpolate_spherical(), blending observations with a fitted sky model. Blending and IDW parameters are derived from sky_cie validation metrics, and the result is scaled by the modeled zenith value to yield digital numbers.

Value

Named list with:

dn_raster

numeric terra::SpatRaster with interpolated above‑canopy sky brightness in digital numbers.

w

numeric. Weight assigned to the model‑based filling source.

k

integer. Number of nearest neighbors used by IDW.

p

numeric. IDW power parameter.

Note

This function is part of a paper under preparation.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

path <- system.file("external/example.txt", package = "rcaiman")
sky_cie <- read_sky_cie(gsub(".txt", "", path), caim$Blue, z, a)

sky_points <- sky_cie$model$rr$sky_points
sky_above <- ootb_sky_above(sky_points, z, a, sky_cie)
plot(sky_above$dn_raster)
plot(caim$Blue/sky_above$dn_raster)

## End(Not run)

Out-of-the-box CIE sky model and raster

Description

Fit and validate a CIE general sky model from a canopy photograph without manual parameter tuning, and return the predicted raster.

Usage

ootb_sky_cie(
  r,
  z,
  a,
  m,
  bin,
  gs,
  min_spherical_dist = seq(0, 12, 3),
  method = c("Nelder-Mead", "BFGS", "CG", "SANN"),
  custom_sky_coef = NULL,
  parallel = TRUE
)

Arguments

Details

Runs a full pipeline to fit a CIE sky model to radiance from a canopy image:

1. a preliminary estimate of sky digital numbers is attempted using the two-corner method aiming to start with a comprehensive sampling of the sky vault (see method = "detect_bg_dn" of apply_by_direction()).

2. sky point extraction is performed with extract_sky_points(), using information from a binary mask (bin) and post-filtering with rem_nearby_points() and rem_outliers().

3. relative radiance is computed with extract_rr() and fitted to CIE sky models using fit_cie_model(), selecting the best among different initial conditions and optimization methods.

4. model validation is performed via validate_cie_model().

5. raster prediction with cie_image().

Value

List with:

rr_raster

numeric terra::SpatRaster. Predicted relative radiance.

model

list returned by fit_cie_model(). The optimal fit.

model_validation

list returned by validate_cie_model().

dist_to_black

Value of dist_to_black used in extract_sky_points() for the optimal fit.

use_window

logical. Whether a window was used in extract_rr() for the optimal fit.

min_spherical_dist

Value of min_dist used in rem_nearby_points(space = "spherical") for the optimal fit.

sky_points

data.frame with columns row and col. Locations of sky points.

sun_row_col

data.frame with the estimated sun‑disk position in image coordinates.

g

Sky grid used for the optimal fit (as returned by sky_grid_segmentation()).

tested_grids

character vector describing the tested grid configurations.

tested_distances

character vector of tested min_dist values in rem_nearby_points(space = "spherical").

tested_methods

character vector of optimization methods tested in fit_cie_model().

optimal_start

starting parameters selected after testing the 15 CIE skies.

model_up

model fitted to relative radiance detected with the two‑corner method, if that step succeeded; otherwise NULL.

Note

This function is part of a paper under preparation.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)

bin <- ootb_bin(caim, z, a, m, TRUE)

set.seed(7)
gs <- list(
  #high res
  sky_grid_segmentation(z, a, 2.25, first_ring_different = TRUE),
  sky_grid_segmentation(z, a, 2.8125, first_ring_different = TRUE),
  #medium res
  sky_grid_segmentation(z, a, 9, first_ring_different = TRUE),
  sky_grid_segmentation(z, a, 10, first_ring_different = TRUE),
  #low res
  sky_grid_segmentation(z, a, 15, first_ring_different = FALSE),
  sky_grid_segmentation(z, a, 18, first_ring_different = FALSE)
)

sky_cie <- ootb_sky_cie(r, z, a, m, bin, gs,
                        method = c("Nelder-Mead", "BFGS", "CG", "SANN"),
                        min_spherical_dist = seq(0, 12, 3),
                        parallel = TRUE)

sky_cie$rr_raster
plot(sky_cie$rr_raster)
sky_cie$model_validation$rmse
plot(sky_cie$model_validation$pred, sky_cie$model_validation$obs)
abline(0,1)

ratio <- r/sky_cie$rr_raster/sky_cie$model$rr$zenith_dn
plot(ratio)
plot(select_sky_region(ratio, 0.95, 1.05))
plot(select_sky_region(ratio, 1.15, max(ratio[], na.rm = TRUE)))

plot(bin)
points(sky_cie$sky_points$col,
       nrow(caim) - sky_cie$sky_points$row, col = 2, pch = 10)


## End(Not run)

Optimize minimum distance to black pixels

Description

Estimate an optimal buffer (dist_to_black) to keep sampled sky points away from candidate canopy pixels (black pixels).

Usage

optim_dist_to_black(r, z, a, m, bin, g)

Arguments

Details

The heuristic seeks the largest buffer that still yields uniform angular coverage. It iteratively decreases dist_to_black while monitoring the percentage of 30 deg sky‑grid cells covered by sampled points. If coverage is low, the buffer is relaxed (and may be removed). This balances border avoidance with representativeness across the sky vault.

Value

numeric vector of length one to be passed as dist_to_black to extract_sky_points(), or NULL if no buffer is advised.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
r <- caim$Blue

bin <- binarize_by_region(r, ring_segmentation(z, 15), "thr_isodata") &
  select_sky_region(z, 0, 88)
g <- sky_grid_segmentation(z, a, 10, first_ring_different = TRUE)

dist_to_black <- optim_dist_to_black(r, z, a, m, bin, g)
dist_to_black

bin <- grow_black(bin, 11)
plot(bin)
dist_to_black <- optim_dist_to_black(r, z, a, m, bin, g)
dist_to_black

## End(Not run)

Optimize sun angular coordinates

Description

Refine the solar position in a fitted CIE sky model by optimizing zenith and azimuth to best match observed relative radiance.

Usage

optim_sun_angles(model, method = c("Nelder-Mead", "BFGS", "CG", "SANN"))

Arguments

Details

Evaluates one or more methods from stats::optim() starting at model$sun_angles. After each optimization the model is re‑fitted and the process repeats until the change in solar position is < 1 deg. The best result across methods is kept.

Value

List like model, potentially with updated sun_angles and metric, and a new method_sun indicating the best optimization method. If no improvement is found, method_sun is NULL.

Note

The objective function penalizes solutions that move the sun position by more than 10 deg from the initial estimate to discourage unrealistic shifts.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# See fit_cie_model() for details on below file
path <- system.file("external/sky_points.csv",
                    package = "rcaiman")
sky_points <- read.csv(path)
sky_points <- sky_points[c("Y", "X")]
colnames(sky_points) <- c("row", "col")
sun_angles <- c(z = 39.5, a = 17.4)

rr <- extract_rr(caim$Blue, z, a, sky_points)

set.seed(7)
model <- fit_cie_model(rr, sun_angles, general_sky_type = "Clear")

print(model$sun_angles)
print(model$metric)

plot(model$rr$sky_points$rr, model$rr$sky_points$pred)
abline(0,1)
lm(model$rr$sky_points$pred~model$rr$sky_points$rr) %>% summary()

model <- optim_sun_angles(model)
print(model$sun_angles)
print(model$metric)
model$method_sun

## End(Not run)

Paint with mask

Description

Paint image pixels inside or outside a logical mask with a solid color.

Usage

paint_with_mask(r, m, color = "red", where = "outside")

Arguments

Value

numeric terra::SpatRaster with three layers and the geometry of r. Equal to r, but with pixels in the selected region painted with color. Single-layer inputs are replicated to allow color painting.

Examples

## Not run:
r <- read_caim()
z <- zenith_image(ncol(r), lens())
a <- azimuth_image(z)
m <- select_sky_region(z, 20, 70) & select_sky_region(a, 90, 180)

masked_caim <-  paint_with_mask(normalize_minmax(r), m)
plotRGB(masked_caim * 255)

masked_bin <- paint_with_mask(binarize_with_thr(r$Blue, 125), m)
plotRGB(masked_bin * 255)

r <- normalize_minmax(r)
paint_with_mask(r, m, color = c(0.2, 0.2, 0.2))  # vector
paint_with_mask(r, m, color = "blue")     # name
paint_with_mask(r, m, color = "#00FF00")  # hexadecimal

## End(Not run)

Generate polar quadtree segmentation

Description

Segment a hemispherical image into large circular trapezoids and recursively split them into four trapezoids of equal angular size whenever brightness heterogeneity exceeds a predefined threshold.

Usage

polar_qtree(r, z, a, scale_parameter, angle_width = 30, max_splittings = 6)

Arguments

Details

A circular trapezoid, hereafter referred to as a cell, is the intersection of a ring (zenith‑angle band) and a sector (azimuth‑angle band). Heterogeneity within a cell is measured as the standard deviation of pixel values (a first‑order texture metric). The change in heterogeneity due to splitting is delta, defined as the sum of the standard deviations of the four subcells minus the standard deviation of the parent cell. A split is kept where delta > scale_parameter. For multi‑layer r, delta is computed per layer and averaged to decide splits. Angular resolution at level i is angle_width / 2^i.

Value

Single-layer terra::SpatRaster with integer values and the same number of rows and columns as r.

Examples

## Not run:
# Find large patches of white ---------------------------------------------
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

bin <- binarize_with_thr(r, thr_isodata(r[]))
plot(bin)

seg <- polar_qtree(bin, z, a, 0, 30, 3)
plot(extract_feature(bin, seg) == 1)

## End(Not run)

Write and read binarized images

Description

Wrapper functions around terra::rast() to read and write binary masks.

Usage

read_bin(path)

write_bin(bin, path)

Arguments

Details

write_bin() multiplies the input logical raster by 255 and writes the result as a GeoTIFF (GTiff) with datatype INT1U. Both write_bin() and read_bin() set the raster extent to terra::ext(0, ncol(r), 0, nrow(r)) and the CRS to EPSG:7589.

Value

See Functions

Functions

write_bin

Write a one-layer logical terra::SpatRaster to disk as a GeoTIFF (GTiff, INT1U). No return value.

read_bin

Read a file with values 255 and/or 0, such as the one produced by write_bin (see Details), and return a logical terra::SpatRaster (TRUE for 255, FALSE for 0).

See Also

read_caim(), write_caim().

Examples

## Not run:
z <- zenith_image(1000, lens())
m <- !is.na(z)
my_file <- file.path(tempdir(), "mask.tif")
write_bin(m, my_file)
m_from_disk <- read_bin(my_file)
plot(m - m_from_disk)

## End(Not run)

Read a canopy image from a file

Description

Reads a born-digital image (typically RGB-JPEG or RGB-TIFF) using terra::rast() and returns a terra::SpatRaster object. Optionally, it can extract a rectangular region of interest (ROI) specified by the user.

Usage

read_caim(path = NULL, upper_left = NULL, width = NULL, height = NULL)

Arguments

Details

This function is intended for importing color hemispherical photographs, such as those obtained with digital cameras equipped with fisheye lenses. For raw image files (e.g., NEF, CR2), see read_caim_raw().

Internally, this is a wrapper around terra::rast(), so support for image formats depends on the capabilities of the terra package.

If no arguments are provided, a sample image will be returned.

Value

Numeric terra::SpatRaster, typically with layers named "Red", "Green", and "Blue". If the file format or metadata prevents automatic layer naming, names will be inferred and a warning may be issued.

Selecting a Region of Interest

To load a specific subregion from the image, use the arguments upper_left, width, and height. These are expressed in raster coordinates, similar to a spreadsheet layout: columns first, then rows. In other words, specify coordinates as c(column, row), not c(row, column), which is typical in data.frame objects.

While any image editor can be used to obtain these values, this function was tested with ImageJ, particularly the Fiji distribution. A recommended workflow:

1. Open the image in Fiji.

2. Draw a rectangular selection.

3. Go to Edit > Selection > Specify... to read upper_left, width, and height.

Note

The example image was created from a raw photograph taken with a Nikon Coolpix 5700 and a FC-E9 auxiliary lens, processed with the following code:

zenith_colrow <- c(1290, 988)/2
diameter <- 756
z <- zenith_image(diameter, lens("Nikon_FCE9"))
a <- azimuth_image(z)
m <- !is.na(z)
caim <- read_caim_raw("DSCN4606.NEF")
caim <- crop_caim(caim, zenith_colrow - diameter/2, diameter, diameter)
caim <- correct_vignetting(caim, z, c(0.0638, -0.101))
caim <- c(mean(caim$Y, caim$M), caim$G, caim$C)
caim <- fisheye_to_equidistant(caim, z, a, m, radius = 300, k = 1)
write_caim(caim, "example.tif", 16)

See Also

write_caim()

Examples

path <- system.file("external/DSCN4500.JPG", package = "rcaiman")
zenith_colrow <- c(1276, 980)
diameter <- 756*2
caim <- read_caim(path, zenith_colrow - diameter/2, diameter, diameter)
plot(caim$Blue)

Read a canopy image from a raw file

Description

Read unprocessed sensor data from a camera RAW file and split the signal by spectral band according to the in-camera color filter array (CFA). Use this to obtain images with precise radiometry.

Usage

read_caim_raw(path, only_blue = FALSE, offset_value = NULL)

Arguments

Details

Uses Python rawpy through reticulate to access sensor data and black-level metadata. Optionally extracts only the blue/cyan band.

Value

Numeric terra::SpatRaster:

• single-layer if only_blue = TRUE.

• multi-layer if only_blue = FALSE, with one layer per color per CFA color (e.g., R, G, B).

Layers are named according to metadata in the raw file.

Check Python Accessibility

To ensure that R can access a Python installation, run the following test:

reticulate::py_eval("1+1")

If R can access Python successfully, you will see 2 in the console. If not, you will receive instructions on how to install Python.

Create a Virtual Environment

After passing the Python accessibility test, create a virtual environment using the following command:

reticulate::virtualenv_create()

Install rawpy

Install the rawpy package within the virtual environment:

reticulate::py_install("rawpy")

For RStudio Users

If you are an RStudio user who works with projects, you will need a .Renviron file in the root of each project. To create a .Renviron file, follow these steps:

• Create a "New Blank File" named ".Renviron" (without an extension) in the project's root directory.

• Run bellow code:

path <- file.path(reticulate::virtualenv_root(),
reticulate::virtualenv_list(), "Scripts", "python.exe")
paste("RETICULATE_PYTHON =", path)

• Copy/paste the line from the console (the string between the quotes) into the .Renviron file. This is an example ⁠RETICULATE_PYTHON = ~/.virtualenvs/r-reticulate/Scripts/python.exe⁠

• Do not forget to save the changes

By following these steps, users can easily set up their environment to access raw data efficiently, but it is not the only way of doing it, you might know an easier or better one.

See the help page of read_caim() and fisheye_to_equidistant() as a complement to this help page. Further details about raw files can be found in Díaz et al. (2024).

References

Díaz GM, Lang M, Kaha M (2024). “Simple calibration of fisheye lenses for hemipherical photography of the forest canopy.” Agricultural and Forest Meteorology, 352, 110020. ISSN 0168-1923, doi:10.1016/j.agrformet.2024.110020.

See Also

read_caim()

Examples

## Not run:
file_name <- tempfile(fileext = ".NEF")
download.file("https://osf.io/s49py/download", file_name, mode = "wb")

# Geometric and radiometric corrections -----------------------------------
zenith_colrow <- c(1290, 988)/2
diameter <- 756
z <- zenith_image(diameter, lens("Nikon_FCE9"))
a <- azimuth_image(z)
m <- !is.na(z)
caim <- read_caim_raw(file_name, only_blue = TRUE)
caim <- crop_caim(caim, zenith_colrow - diameter/2, diameter, diameter)
caim <- correct_vignetting(caim, z, c(0.0638, -0.101))
caim <- fisheye_to_equidistant(caim, z, a, m, radius = 300,
                               k = 1, p = 1, rmax = 100)

## End(Not run)

Remove isolated black pixels

Description

Replace single black pixels (FALSE) that are fully surrounded by white pixels (TRUE) with white. Uses 8-connectivity.

Usage

rem_isolated_black_pixels(bin)

Arguments

Value

Logical terra::SpatRaster of one layer.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

path <- system.file("external/example.txt", package = "rcaiman")
sky <- read_sky_cie(gsub(".txt", "", path), caim$Blue, z, a)
plot(sky$rr_raster)
sky <- sky$rr_raster * sky$model$rr$zenith_dn

bin <- binarize_with_thr(r / sky, 0.9)
plot(bin)
bin2 <- rem_isolated_black_pixels(bin)
plot(bin2)

## End(Not run)

Remove nearby sky points

Description

Select a subset of points so that no retained pair is closer than min_dist in planar or spherical space.

Usage

rem_nearby_points(
  sky_points,
  r = NULL,
  z = NULL,
  a = NULL,
  min_dist = 3,
  space = "planar",
  use_window = TRUE
)

Arguments

Details

When space = "planar", distances are computed in image coordinates and z and a are ignored. When space = "spherical", distances are angular (deg) in hemispherical coordinates. If r is provided, points are ranked by the extracted raster values and retained in descending order.

Value

A data.frame with columns row and col for retained points.

Note

It is assumed that sky_points were extracted from an image with the same dimensions as the r, z, and a rasters. No checks are performed.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
bin <- binarize_by_region(r, ring_segmentation(z, 30),
                          method = "thr_isodata")
bin <- bin & select_sky_region(z, 0, 80)
g <- sky_grid_segmentation(z, a, 10, first_ring_different = TRUE)
sky_points <- extract_sky_points(r, bin, g, dist_to_black = 3)

# planar
sky_points_p <- rem_nearby_points(sky_points, r, min_dist = 100,
                                        space = "planar")
plot(r)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
points(sky_points_p$col, nrow(caim) - sky_points_p$row, col = 3, pch = 0)

# spherical
sky_points_s <- rem_nearby_points(sky_points, r, z, a, min_dist = 30,
                                        space = "spherical")
plot(r)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)
points(sky_points_s$col, nrow(caim) - sky_points_s$row, col = 3, pch = 0)

## End(Not run)

Remove statistical outliers in sky points

Description

Remove sky points considered outliers relative to their local neighbors in a user-specified variable.

Usage

rem_outliers(
  sky_points,
  r,
  z,
  a,
  k = 20,
  angular_radius = 20,
  laxity = 2,
  cutoff_side = "both",
  use_window = TRUE,
  trend = NULL
)

Arguments

Details

Based on the Statistical Outlier Removal (SOR) filter from the PCL library. Distances are computed on a spherical surface. The number of neighbors is controlled by k, and angular_radius sets the maximum search radius (deg). If fewer than k neighbors are found within that radius, the point is retained due to insufficient evidence for removal. The decision criterion follows Leys et al. (2013):

M - laxity \times MAD < x_i < M + laxity \times MAD

where x_i is the value from r at sky point i, M and MAD are the median and median absolute deviation, respectively, computed from the the neighbors of x_i, and laxity is the user-defined threshold.

cutoff_side controls which side(s) of the inequality are evaluated: "both" (default), "left" (left tail only), or "right" (right tail only).

Value

The retained points represented as a data.frame with columns row and col, same as sky_points.

Note

This function assumes that sky_points and the terra::SpatRaster objects refer to the same image geometry. No checks are performed.

References

Leys C, Ley C, Klein O, Bernard P, Licata L (2013). “Detecting outliers: Do not use standard deviation around the mean, use absolute deviation around the median.” Journal of Experimental Social Psychology, 49(4), 764–766. ISSN 0022-1031, doi:10.1016/j.jesp.2013.03.013.

Examples

## Not run:
caim <- read_caim()
r <- caim$Blue
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
m <- !is.na(z)
bin <- binarize_by_region(r, ring_segmentation(z, 30),
                          method = "thr_isodata")
bin <- bin & select_sky_region(z, 0, 80)
g <- sky_grid_segmentation(z, a, 5, first_ring_different = TRUE)
sky_points <- extract_sky_points(r, bin, g,
                                 dist_to_black = 3)
plot(r)
points(sky_points$col, nrow(caim) - sky_points$row, col = 2, pch = 10)

sky_points <- rem_outliers(sky_points, r, z, a,
                                 k = 5,
                                 angular_radius = 20,
                                 laxity = 2,
                                 cutoff_side = "left")
points(sky_points$col, nrow(caim) - sky_points$row, col = 3, pch = 0)

## End(Not run)

Assign zenith-ring labels

Description

Segment a hemispherical view into concentric rings by slicing the zenith angle from 0 to 90 deg at equal steps.

Usage

ring_segmentation(z, angle_width, return = "id")

Arguments

Value

Single-layer terra::SpatRaster: ring IDs if return = "id", or mean zenith angle (deg) if return = "angle".

Examples

z <- zenith_image(600, lens())
rings <- ring_segmentation(z, 15)
plot(rings == 1)

Assign azimuth-sector labels

Description

Segment a hemispherical view into equal azimuth sectors by slicing the azimuth angle from 0 to 360 deg at fixed steps.

Usage

sector_segmentation(a, angle_width)

Arguments

Value

Single-layer terra::SpatRaster with integer values. Segments will resemble pizza slices.

Examples

z <- zenith_image(600, lens())
a <- azimuth_image(z)
sectors <- sector_segmentation(a, 15)
plot(sectors == 1)

Select sky region

Description

Select pixels from a single-layer image based on value limits.

Usage

select_sky_region(r, from, to)

Arguments

Details

Works with any numeric terra::SpatRaster of one layer, but is especially well-suited for images from zenith_image() or azimuth_image(). For azimuth ranges that wrap around 0 deg, combine two masks with logical OR.

Value

Logical terra::SpatRaster (TRUE for the selected region) of the same dimensions as r.

See Also

paint_with_mask()

Examples

## Not run:
z <- zenith_image(1000, lens())
a <- azimuth_image(z)
m1 <- select_sky_region(z, 20, 70)
plot(m1)
m2 <- select_sky_region(a, 330, 360)
plot(m2)
plot(m1 & m2)
plot(m1 | m2)

# 15 deg on each side of 0
m1 <- select_sky_region(a, 0, 15)
m2 <- select_sky_region(a, 345, 360)
plot(m1 | m2)

# You can use this
plot(!is.na(z))
# instead of this
plot(select_sky_region(z, 0, 90))

## End(Not run)

Map sky-grid centers to raster coordinates

Description

Return image row and column indices for the center point of each cell in a sky grid composed of circular trapezoids of equal angular resolution defined by angle_width.

Usage

sky_grid_centers(z, a, angle_width)

Arguments

Value

data.frame with integer columns row and col, one per grid cell.

See Also

sky_grid_segmentation()

Examples

z <- zenith_image(100, lens())
a <- azimuth_image(z)
sky_grid_centers(z, a, 45)

Assign sky-grid labels

Description

Segment a hemispherical view into equal-angle bins in zenith and azimuth, assigning each pixel a grid-cell ID.

Usage

sky_grid_segmentation(z, a, angle_width, first_ring_different = FALSE)

Arguments

Details

The intersection of zenith rings and azimuth sectors forms a grid whose cells are circular trapezoids. By default, IDs encode both components as sectorID * 1000 + ringID. If first_ring_different = TRUE, the zenith ring is not subdivided.

The code below outputs a comprehensive list of valid values for angle_width. For convenience, the column radians_denom can be used to provide angle_width as 180 / radians_denom_i, where radians_denom_i is a value taken from radians_denom.

df <- data.frame(degrees = 90 / 1:180)

deg_to_pi_expr <- function(deg) {
  frac <- MASS::fractions(deg / 180)
  strsplit(as.character(frac), "/")[[1]][2] %>% as.numeric()
}

df$radians_denom <- sapply(df$degrees, function(deg) deg_to_pi_expr(deg))

z <- zenith_image(10, lens())
a <- azimuth_image(z)
u <- c()
for (i in 1:nrow(df)) {
  u <- c(u, tryCatch(is((sky_grid_segmentation(z, a,
                            180/df$radians_denom[i])), "SpatRaster"),
                     error = function(e) FALSE))
}
df <- df[u, ]
df

Value

Single-layer terra::SpatRaster with integer labels. The object carries attributes angle_width and first_ring_different.

See Also

sky_grid_centers(), ring_segmentation(), sector_segmentation()

Examples

caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
g <- sky_grid_segmentation(z, a, 15)
plot(g == 24005)
## Not run:
display_caim(g = g)

## End(Not run)

Test lens projection function

Description

Verify that a lens projection maps zenith 0 deg to 0 and 90 to 1.

Usage

test_lens_coef(lens_coef)

Arguments

Details

The package tolerate a number very close to 1 at 90 deg but not exactly 1 as long as it is greater than 1. See testthat::expect_equal() for tolerance details.

When the test fails at "Test that lens projection function does not predict values barely below one", the best practice is to manually edit the last coefficient (e.g., change -0.0296 to -0.0295).

If the check "works within the 0–1 range" fails, new calibration data may be required.

Value

Invisibly returns TRUE if all checks pass; otherwise an error is thrown.

See Also

calc_relative_radius()

Examples

test_lens_coef(lens("Nikon_FCE9"))
test_lens_coef(2/pi)

Compute IsoData threshold

Description

Compute a threshold using the IsoData algorithm Ridler and Calvard (1978), recommended by Jonckheere et al. (2005).

Usage

thr_isodata(x)

Arguments

Details

Implementation follows the IsoData method by Gabriel Landini, as implemented in autothresholdr::auto_thresh(). Unlike that version, this function accepts numeric data over an arbitrary range. NA values are ignored.

Value

Numeric vector of length one.

References

Jonckheere I, Nackaerts K, Muys B, Coppin P (2005). “Assessment of automatic gap fraction estimation of forests from digital hemispherical photography.” Agricultural and Forest Meteorology, 132(1-2), 96–114. doi:10.1016/j.agrformet.2005.06.003.

Ridler TW, Calvard S (1978). “Picture thresholding using an iterative selection method.” IEEE Transactions on Systems, Man, and Cybernetics, 8(8), 630–632. doi:10.1109/tsmc.1978.4310039.

Examples

caim <- read_caim()
thr_isodata(caim$Blue[])

Compute model-based thresholds

Description

Compute threshold values from background digital numbers (DN) using Equation 1 in Díaz and Lencinas (2018), a linear function whose slope can be weighted.

Usage

thr_mblt(dn, intercept, slope)

Arguments

Details

The model was derived from canopy targets (perforated, rigid, dark surfaces) backlit under homogeneous illumination, photographed with a Nikon Coolpix 5700 in JPEG mode. Images were gamma-back-corrected with a default gamma of 2.2 (see invert_gamma_correction()). Results showed that the optimal threshold is linearly related to the background DN (see Figures 1 and 7 in Díaz and Lencinas (2018)). This shifted the goal from estimating an optimal threshold Song et al. (2014) to estimating the background DN as if the canopy were absent, as proposed by Lang et al. (2010).

To apply the weighting parameter (w) from Equation 1, supply slope as slope \times w.

Equation 1 was developed with 8-bit images. New coefficients should be calibrated in the 0–255 domain, which is what thr_mblt() expects, even though the dn argument must be normalized. This design choice harmonizes behavior across the package.

Value

An object of the same class and dimensions as dn.

Note

Users are encouraged to acquire raw files (see read_caim_raw()).

References

Díaz GM, Lencinas JD (2018). “Model-based local thresholding for canopy hemispherical photography.” Canadian Journal of Forest Research, 48(10), 1204–1216. doi:10.1139/cjfr-2018-0006.

Lang M, Kuusk A, Mõttus M, Rautiainen M, Nilson T (2010). “Canopy gap fraction estimation from digital hemispherical images using sky radiance models and a linear conversion method.” Agricultural and Forest Meteorology, 150(1), 20–29. doi:10.1016/j.agrformet.2009.08.001.

Song GM, Doley D, Yates D, Chao K, Hsieh C (2014). “Improving accuracy of canopy hemispherical photography by a constant threshold value derived from an unobscured overcast sky.” Canadian Journal of Forest Research, 44(1), 17–27. doi:10.1139/cjfr-2013-0082.

See Also

normalize_minmax(), invert_gamma_correction()

Examples

thr_mblt(invert_gamma_correction(125), -7.8, 0.95 * 0.5)

Compute two-corner thresholds

Description

Apply Rosin’s geometric corner detector for unimodal histograms Rosin (2001) to both sides of a bimodal canopy histogram as in Macfarlane’s two-corner approach Macfarlane (2011). Optional slope-reduction as in Macfarlane is supported. Peak detection can use a prominence-based method or Macfarlane’s original windowed maxima.

Usage

thr_twocorner(
  x,
  sigma = 2,
  slope_reduction = TRUE,
  method = "prominence",
  diagnose = FALSE,
  adjust_par = TRUE
)

Arguments

Details

Runs the following pipeline:

1. Build an 8-bit histogram of x after min–max normalization to ⁠[0,255]⁠.

2. Smooth the histogram with a discrete Gaussian kernel of standard deviation sigma (in DN), using reflective padding to mitigate edge bias.

3. Detect the two mode peaks according to method:

   • method = "prominence": find local maxima via discrete derivatives with plateau handling; find nearest left/right minima; compute peak prominence as \min(y[p]-y[L],\,y[p]-y[R]); filter by minimum prominence and minimum peak separation; select the pair that maximizes \min(\mathrm{prom}_\mathrm{left},\,\mathrm{prom}_\mathrm{right}).

   • method = "macfarlane": search peaks within fixed DN windows as in Macfarlane (2011). Peak search is performed on the unsmoothed histogram, as originally proposed.

4. Apply Rosin’s corner construction on each mode. The line end at the “first empty bin after the last filled bin” is determined on the unsmoothed histogram Rosin (2001). If slope_reduction = TRUE and the peak height exceeds the mean of the smoothed histogram, the peak height is reduced to that mean before the geometric construction (Macfarlane’s variant).

5. Derive thresholds:

   T_l = DN_{lc} + (DN_{uc} - DN_{lc}) \times 0.25

   T_m = DN_{lc} + (DN_{uc} - DN_{lc}) \times 0.50

   T_h = DN_{lc} + (DN_{uc} - DN_{lc}) \times 0.75

   where DN_{lc} and DN_{uc} are the lower and upper corners.

When diagnose = TRUE, a geometric construction like the one shown below is sent to the active graphics device. When diagnose = TRUE and adjust_par = TRUE, the function temporarily adjusts margins to draw the geometric construction in a large square format and restores the previous settings on exit. If adjust_par = FALSE, no parameters are changed and the plot respects the current device/layout.

Value

A list with:

lp

Lower peak DN.

lc

Lower corner DN (Rosin on the left mode).

tl

Low threshold derived from lc and uc.

tm

Mid threshold derived from lc and uc.

th

High threshold derived from lc and uc.

uc

Upper corner DN (Rosin on the right mode).

up

Upper peak DN.

References

Macfarlane C (2011). “Classification method of mixed pixels does not affect canopy metrics from digital images of forest overstorey.” Agricultural and Forest Meteorology, 151(7), 833–840. doi:10.1016/j.agrformet.2011.01.019.

Rosin PL (2001). “Unimodal thresholding.” Pattern Recognition, 34(11), 2083–2096. ISSN 0031-3203, doi:10.1016/s0031-3203(00)00136-9.

Examples

caim <- conventional_lens_image()
# Prominence-based peak detection, Gaussian smoothing with sigma = 2 DN
thr <- thr_twocorner(caim$Blue[], sigma = 2, slope_reduction = FALSE,
                     method = "prominence")
# Original Macfarlane peak search (for comparison)
thr2 <- thr_twocorner(caim$Blue[], sigma = 2, slope_reduction = TRUE,
                      method = "macfarlane")
data.frame(unlist(thr), unlist(thr2))

Validate CIE sky models

Description

Validate CIE sky models fitted with fit_cie_model() (or ootb_sky_cie()) using k-fold cross-validation on relative radiance.

Usage

validate_cie_model(model, k = 10)

Arguments

Details

Validation uses k-fold cross-validation with k = 10 by default (Kohavi 1995). For each fold, predictions are compared against observed relative radiance and a simple linear regression of predicted vs. observed is fitted, following Piñeiro et al. (2008). Outliers are detected with a median–MAD rule (see rem_outliers()) using a threshold of 3 and removed before fitting the regression.

Value

A list with:

lm

An object of class lm (see stats::lm()) for predicted vs. observed.

pred

Numeric vector of predicted relative radiance used in lm.

obs

Numeric vector of observed relative radiance used in lm.

r_squared

Coefficient of determination (R^2).

rmse

Root mean squared error (RMSE).

mae

Median absolute error (MAE).

is_outlier

Logical vector marking outliers (MAD > 3) in the original sky-point set.

metric

Numeric value. Mean squared deviation as in Gauch et al. (2003).

References

Gauch HG, Hwang JTG, Fick GW (2003). “Model evaluation by comparison of model‐based predictions and measured values.” Agronomy Journal, 95(6), 1442–1446. ISSN 1435-0645, doi:10.2134/agronj2003.1442.

Kohavi R (1995). “A study of cross-validation and bootstrap for accuracy estimation and model selection.” In Proceedings of the 14th International Joint Conference on Artificial Intelligence - Volume 2, IJCAI'95, 1137–1143. ISBN 1558603638.

Piñeiro G, Perelman S, Guerschman JP, Paruelo JM (2008). “How to evaluate models: Observed vs. predicted or predicted vs. observed?” Ecological Modelling, 216(3-4), 316–322. doi:10.1016/j.ecolmodel.2008.05.006.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)
path <- system.file("external/sky_points.csv", package = "rcaiman")
sky_points <- read.csv(path)[c("Y", "X")]
names(sky_points) <- c("row", "col")
rr <- extract_rr(caim$Blue, z, a, sky_points)

set.seed(7)
model <- fit_cie_model(rr, sun_angles = c(z = 49.5, a = 27.4),
                       general_sky_type = "Clear", method = "CG")
val <- validate_cie_model(model, k = 10)
val$r_squared
val$rmse

## End(Not run)

Write canopy image

Description

Wrapper around terra::writeRaster() that writes a canopy image as GeoTIFF with 8- or 16-bit unsigned integers, setting CRS and extent.

Usage

write_caim(caim, path, bit_depth)

Arguments

Details

Adds the .tif extension to path if missing. The CRS is set to EPSG:7589 and the extent to ⁠[0, ncol] × [0, nrow]⁠ in pixel units. Data are written as INT1U when bit_depth = 8 and INT2U when bit_depth = 16.

Value

No return value. Called for side effects.

Examples

## Not run:
caim <- read_caim() %>% normalize_minmax(0, 255)
write_caim(caim * (2^8 - 1),  file.path(tempdir(), "test_8bit"),  8)
write_caim(caim * (2^16 - 1), file.path(tempdir(), "test_16bit"), 16)
# Note: values are scaled by (2^bit_depth - 1) to avoid the maximum bin,
# which read_caim() might turn NA.

## End(Not run)

Write and read out-of-the-box CIE sky model and raster

Description

Persist and restore the out-of-the-box CIE sky model, its diagnostics, and related rasters/points. The writer produces a human-readable .txt manifest plus CSV and GeoPackage sidecar files. The reader reconstructs a list object compatible with the out-of-the-box pipeline.

Usage

write_sky_cie(sky_cie, name)

read_sky_cie(name, r, z, a, refit_allowed = FALSE)

Arguments

Details

Encoding is UTF-8. Decimal point is .. Unknown keys are ignored with a warning. Missing required keys trigger an error. The manifest begins with ⁠format_version:⁠ which is checked for basic compatibility.

When read_sky_cie() detects manual edits (moved sun disk or changed sky points) and refit_allowed = TRUE, it re-fits the CIE model using the current r, z, and a, then revalidates.

Value

See Functions.

Functions

write_sky_cie

No return value. Writes six files to disk with the prefix name (see below).

read_sky_cie

Returns a list similar to the output of ootb_sky_cie() and suitable as input to ootb_sky_above().

Files written by write_sky_cie

• Plain text manifest: name.txt

• CSV with sky radiance samples: name_rr.csv

• CSV with sky radiance samples for the upward pass: name_rr_up.csv (optional)

• GeoPackage with sky sample points: name_sky_points.gpkg

• GeoPackage with the sun disk location: name_sun_disk.gpkg

• CSV with validation pairs: name_val.csv

Text file keys

⁠format_version:⁠

Semantic version of the manifest.

⁠sun_theta:⁠

Solar zenith (deg).

⁠sun_phi:⁠

Solar azimuth (deg).

⁠method_sun:⁠

Method used to optimize sun coordinates.

⁠zenith_dn:⁠

Reference DN at zenith.

⁠start_a:⁠…⁠start_e:⁠

Initial CIE coefficients.

⁠is_from_detected_sky_dn:⁠

Enables ⁠_rr_up.csv⁠ if TRUE.

⁠fit_a:⁠…⁠fit_e:⁠

Fitted CIE coefficients.

⁠method:⁠

Method used to fit CIE coefficients.

⁠dist_to_black:⁠

Argument passed to extract_sky_points().

⁠grid:⁠

Sky grid parameters (angle_width, first_ring_different).

⁠min_spherical_dist:⁠

Sampling buffer distance (deg).

⁠sky_points_no:⁠

Number of sky points.

⁠outliers_no:⁠

Number of sky points that were detected as outliers.

⁠rmse:⁠

Validation metrics. Root mean squared error.

⁠r_squared:⁠

Validation metric. Coefficient of determination.

⁠mae:⁠

Validation metrics. Mean absolute error.

⁠[Tested: …]⁠

Enumerates tested methods/grids/distances.

Examples

## Not run:
caim <- read_caim()
z <- zenith_image(ncol(caim), lens())
a <- azimuth_image(z)

# Read a previously written model
path <- system.file("external/example.txt", package = "rcaiman")
sky_cie <- read_sky_cie(gsub(".txt", "", path), r = caim$Blue, z = z, a = a,
                        refit_allowed = TRUE)

## End(Not run)

Map between zenith–azimuth angles and raster coordinates

Description

Bidirectional helpers to convert between angular coordinates on the hemispherical image (zenith, azimuth) and raster coordinates (row, col).

Usage

zenith_azimuth_from_row_col(z, a, row, col)

row_col_from_zenith_azimuth(z, a, zenith, azimuth)

Arguments

Details

⁠zenith, azimuth⁠ → ⁠row, col⁠. A sparse set of valid sky points is sampled over the image and enriched with their angular coordinates. Two local least-squares surfaces (spatial::surf.ls, np = 6) are fitted to predict row and col as smooth functions of (azimuth, zenith). Predictions are rounded to the nearest integer index. Out-of-bounds indices are not produced under normal conditions; clamp externally if needed.

⁠row, col⁠ → ⁠zenith, azimuth⁠. Angles are obtained by direct lookup on z and a using terra::cellFromRowCol. If any queried cell is NA (e.g., outside the calibrated lens footprint), a synthetic z is reconstructed from the lens model attached to z (attribute lens_coef), and a is rebuilt with azimuth_image() using the stored orientation attribute in a. This yields robust angle retrieval near borders.

Value

See Functions

Functions

row_col_from_zenith_azimuth

Return image indices for given angles.

zenith_azimuth_from_row_col

Return angles in degrees for given image indices.

Examples

z <- zenith_image(1000, lens())
a <- azimuth_image(z)

rc <- row_col_from_zenith_azimuth(z, a, zenith = c(30, 60), azimuth = c(90, 270))
rc

ang <- zenith_azimuth_from_row_col(z, a, row = rc$row, col = rc$col)
ang

Build Zenith image

Description

Build a single-layer image with zenith angle values, assuming upwards-looking hemispherical photography with the optical axis vertically aligned.

Usage

zenith_image(diameter, lens_coef)

Arguments

Value

terra::SpatRaster with zenith angles in degrees, showing a complete hemispherical view with the zenith at the center. The object carries attributes lens_coef.

Examples

z <- zenith_image(600, lens("Nikon_FCE9"))
plot(z)
